Rover 200 Workshop Manual (1995-1999)18 · Manual gearbox - PG1
18 · Transmission

Manual gearbox - ’l’ series (page 2 of 4)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Manual gearbox - PG1Manual gearbox - ’l’ series · page 2 of 4
Diagram

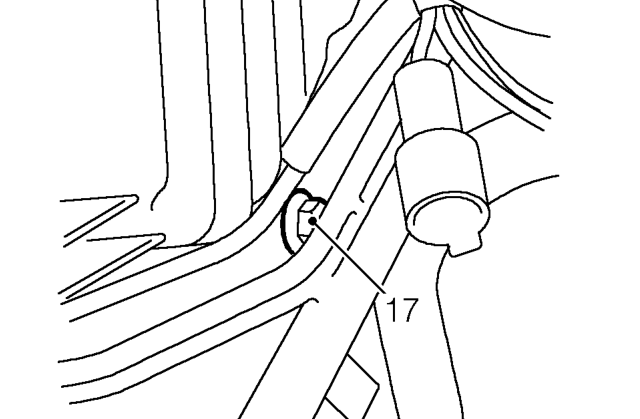

  1. Remove nut securing coolant rail to gearbox mounting plate.
Remove nut securing coolant rail to gearbox mounting plate.

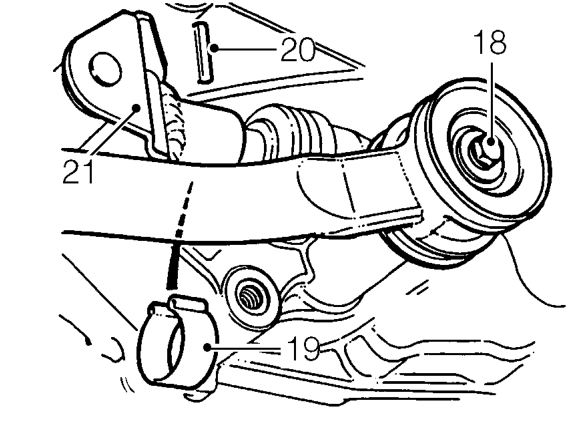

  1. Remove bolt and disconnect gear change steady bar from gearbox, collect 2 washers.
  2. Remove clip retaining selector rod roll pin.
  3. Using a suitable punch, drive out roll pin securing selector rod to selector shaft.
  4. Release selector rod from selector shaft.
  5. Tie selector rod and steady bar aside.
  6. Release LH driveshaft from gearbox as detailed in Differential oil seal. See this section.
  7. Release RH driveshaft from gearbox as detailed in RH differential oil seal. See this section.
  8. Remove LH front tie rod. See FRONT SUSPENSION, Repairs.
Remove LH front tie rod. See FRONT SUSPENSION, Repairs.

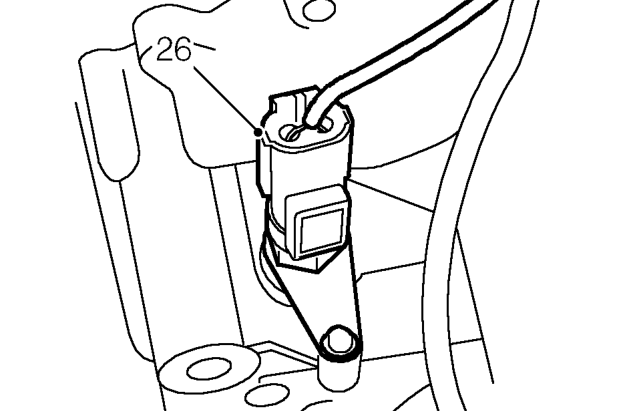

  1. Disconnect multiplug from vehicle speed sensor.
  2. Fit wooden block to jack and position jack to support engine.
