Rover 200 Workshop Manual (1995-1999)18 · Manual gearbox - PG1
18 · Transmission

Gear selector mounting (page 3 of 5)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Manual gearbox - PG1Gear selector mounting · page 3 of 5

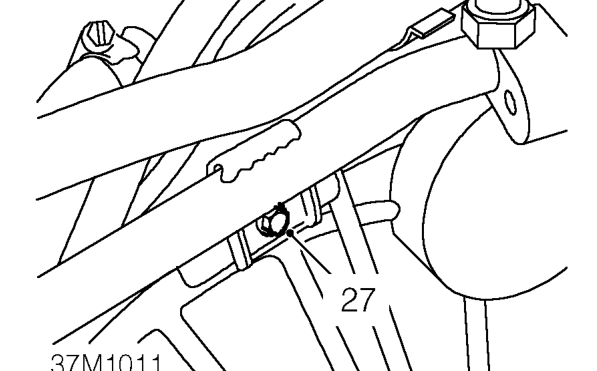

Diagram
  1. Remove bolt securing air conditioning pipe to bracket on gearbox.
  2. Fit wooden block to jack and position jack to support engine.

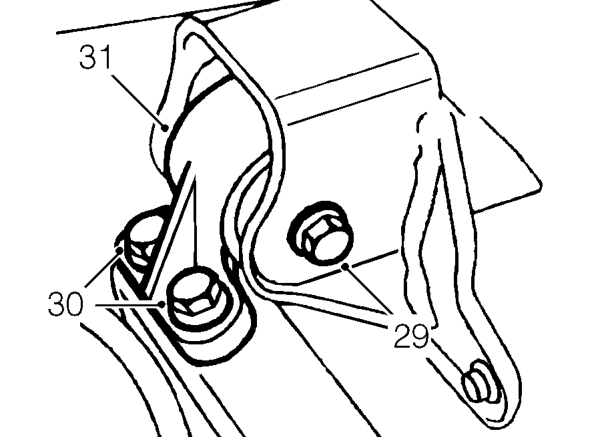

Fit wooden block to jack and position jack to support engine.
  1. Remove through bolt securing engine LH mounting to bracket on body.
  2. Remove 2 bolts securing engine LH mounting to bracket on gearbox.
  3. Remove engine mounting.
  4. Lower engine and gearbox assembly slightly.

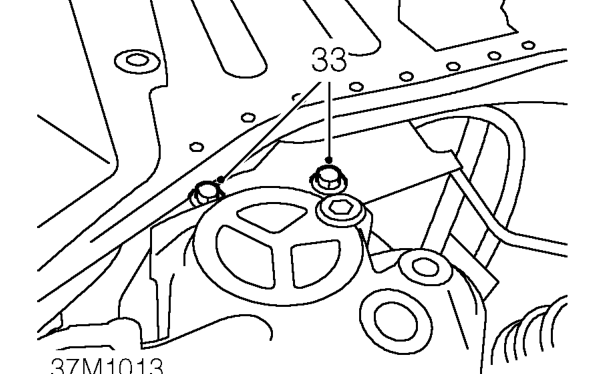

Lower engine and gearbox assembly slightly.
  1. Remove 2 bolts securing mounting bracket to gearbox and remove gearbox mounting bracket.

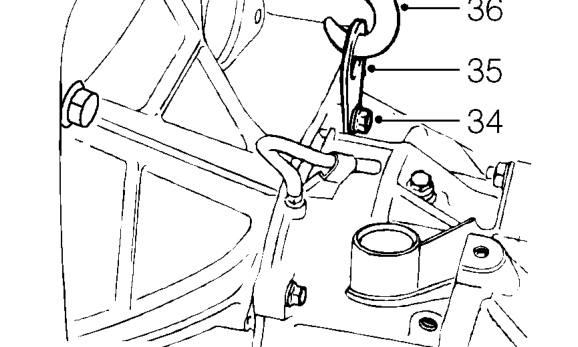

Remove 2 bolts securing mounting bracket to gearbox and remove gearbox mounting bracket.
  1. Remove bolt securing gearbox casing to differential housing.
  2. Position a suitable lifting eye to gearbox and secure with bolt.
  3. Connect suitable lifting equipment to lifting eye.
  4. Take weight of gearbox with lifting equipment.
