Rear screen

REAR SCREEN

Service repair no - 76.81.10

NOTE: The following equipment is required:

Cutting wire and handles. Sharp knife. Windscreen repair kit. Sealer applicator gun. Suction cup lifters.

WARNING: Wear protective gloves when handling glass, solvents and primers.

Remove

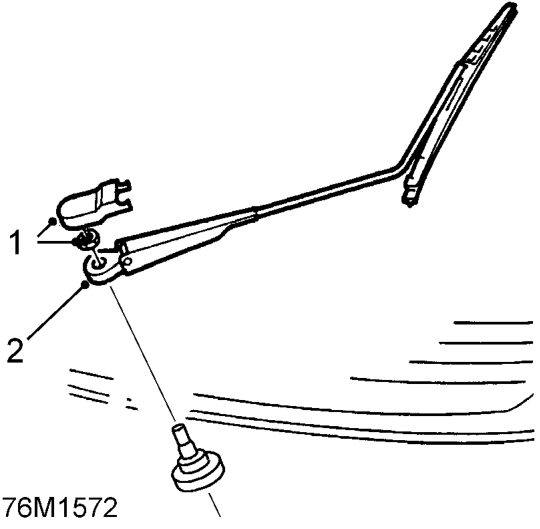

1. Raise wiper arm nut cover and remove nut.
2. Remove wiper arm.

3. Remove trim casing. See Interior trim components. Remove centre high mounted stop lamp.(If fitted) See ELECTRICAL, Repairs.

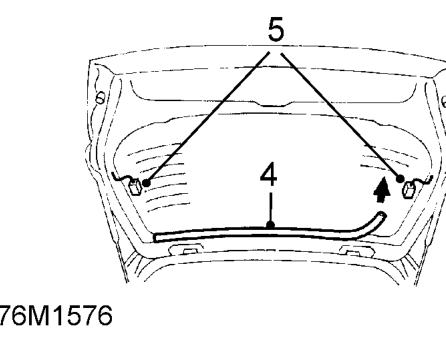

4. Remove trim from upper flange.
5. Disconnect 2 leads from demister panel.

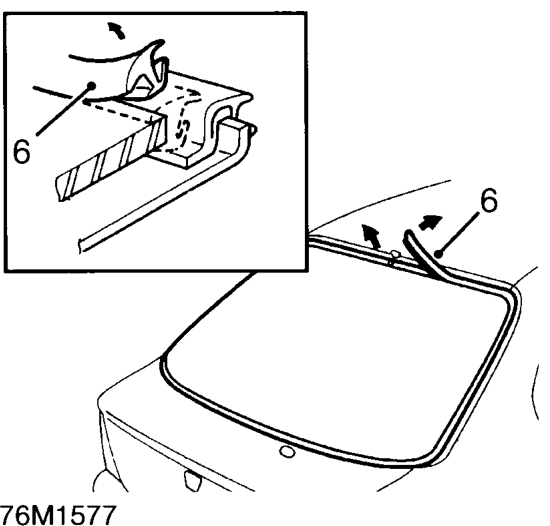

6. Remove moulding from rear screen.

NOTE: Should removal be difficult cut moulding as necessary.

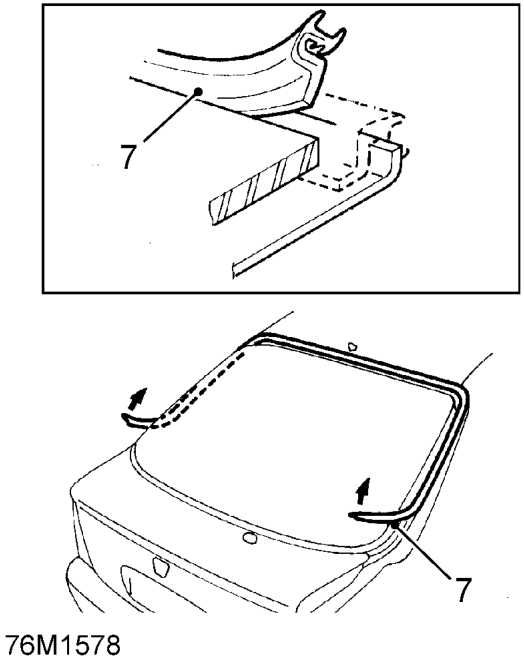

7. Remove sub-moulding from tailgate.
8. Fit covers to protect body work and interior of car.
