Windscreen (page 5 of 5)

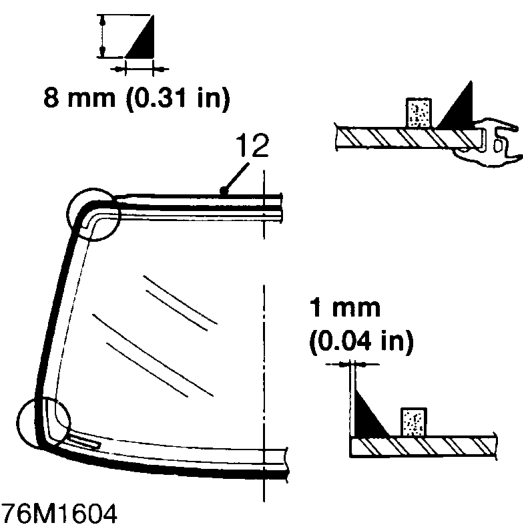

12. Apply a bead of sealer around edge of glass as shown making the bead slightly thicker at each corner.

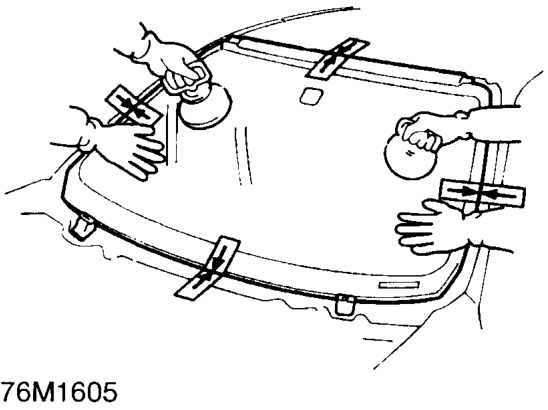

13. With assistant: Lift glass and locate on brackets, carefully align to tapes and lower onto flange. Lightly press glass until its edge is fully seated all the way round.
14. Remove protective coverings and tapes.
15. Remove excess sealant with a knife and wipe from glass with solvent.
16. Let the sealant dry for at least one hour then spray water over the windscreen and check for leaks. Mark leaking areas, and let the windscreen dry, then seal with sealant.
17. Fit interior mirror.
18. Fit ’A’ post finishers. See Interior trim components.
19. Fit windscreen side finishers.
20. Fit roof lamp. See ELECTRICAL, Repairs.
21. Fit sun visors.
22. Fit plenum air intake.
23. Fit windscreen wiper arms.

CAUTION: A curing time of 6 hours is desirable, during this time leave a window open and do not slam the doors. If the car must be used, drive slowly.
