Windscreen (page 2 of 5)

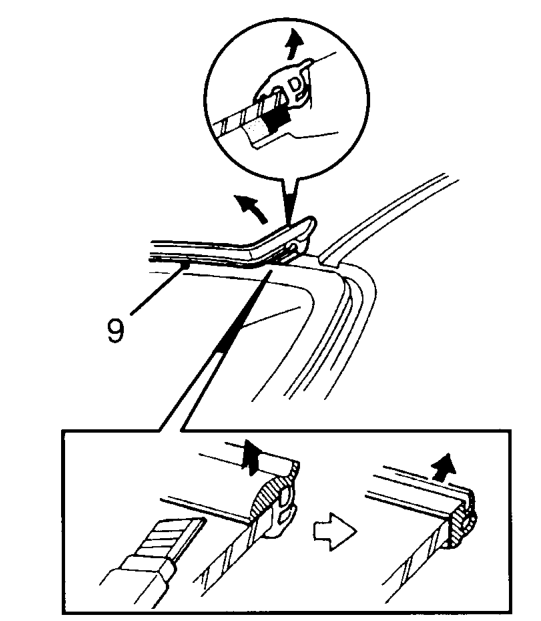

9. Remove windscreen upper moulding.

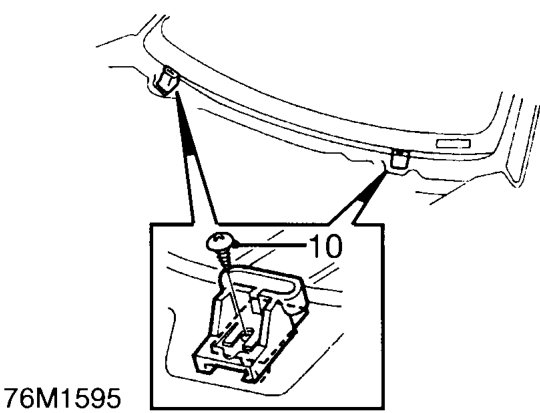

10. Remove 2 screws, remove glass support brackets.
11. Remove ’A’ post upper finishers. See Interior trim components.
12. Remove roof lamp. See ELECTRICAL, Repairs.
13. Remove interior mirror.
14. Remove 4 screws and remove sun visors.
15. Remove plug and screw, remove 2 sun visor retaining clips to allow front edge of headlining to be lowered.
16. Apply protection to fascia panel.

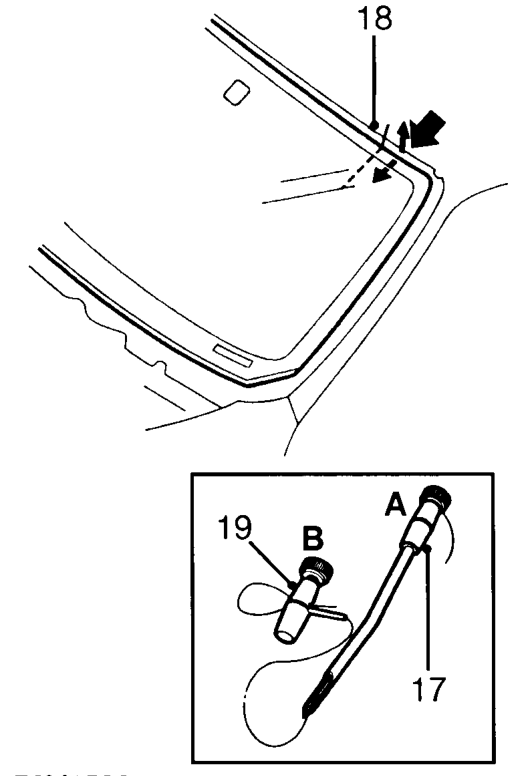

17. Prepare cutting wire in handle ’A’. Bend end of wire to handle and tape over end.
18. Force cutting wire through sealer from inside and 100 mm from a top corner.
19. Attach handle ’B’. Allow 200 mm of wire between handles, bend end of wire to tube and tape over end.
20. With an assistant, wedge the tube of handle ’A’ and carefully cut through the sealer around the entire windscreen.
21. Attach suction cups to glass and lift from body flange.

WARNING: If glass has splintered: Protect eyes and operate demister blower to remove glass from heater ducts. Use a vacuum cleaner to remove glass from fascia, carpet and seats.
