Windscreen

WINDSCREEN

Service repair no - 76.81.01

NOTE: The following equipment is required:

Cutting wire and handles Windscreen repair kit Sealer applicator gun Suction cups

WARNING: Wear protective gloves when handling glass, solvents and primers.

Remove

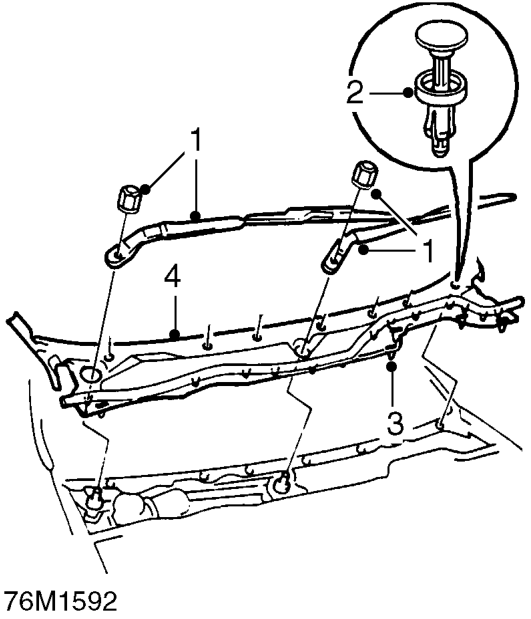

1. Remove 2 nuts from wiper spindles and remove both wiper arms and blades.
2. Remove 7 studs securing upper edge of plenum air intake.
3. Release 9 studs securing lower edge of plenum air intake.
4. Release plenum air intake from bonnet hinges and "A" post finishers. Remove plenum air intake.
5. Protect glass surface if glass is to be refitted.
6. Fit protection to bonnet and areas around windscreen.

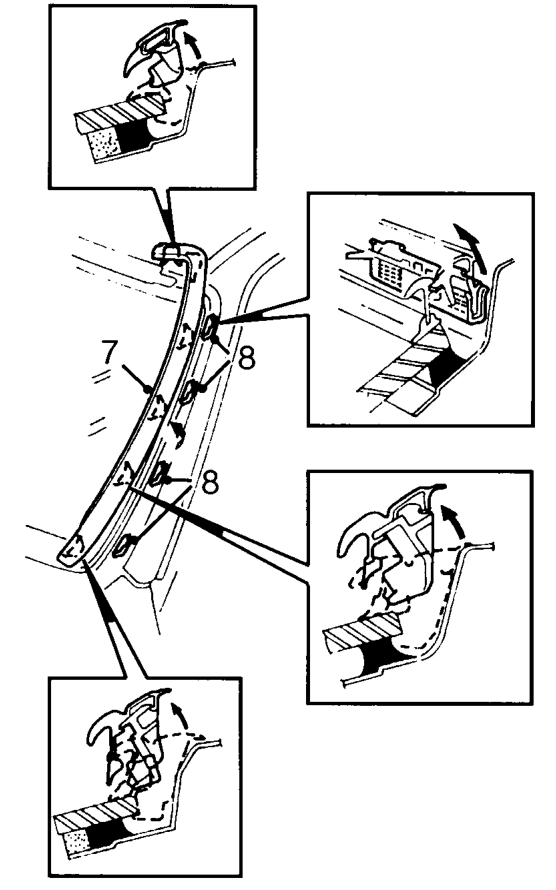

7. Remove windscreen side finishers.
8. Remove side finisher retainers from body.

NOTE: It may be necessary to cut out upper moulding if removal is difficult.
