Front seat lumbar support mechanism (page 2 of 2)

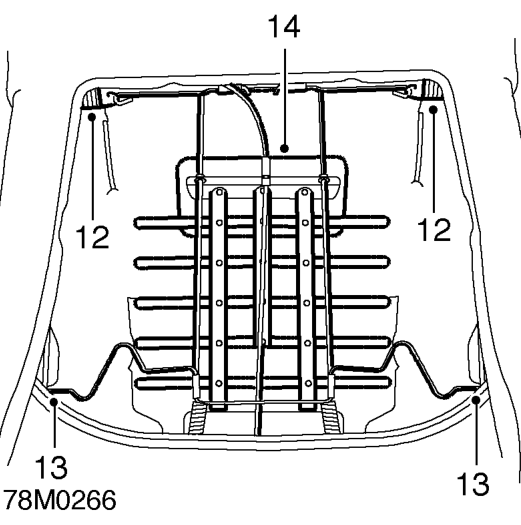

12. Release 2 springs from lumbar mechanism.
13. Release lumbar mechanism from seat frame.
14. Remove lumbar mechanism.

Refit

1. Fit lumbar mechanism.
2. Secure lumbar mechanism to seat frame.
3. Secure 2 springs to lumbar mechanism.
4. Route cable through seat frame to hand wheel.
5. Fit inner cable to hand wheel and secure outer cable.
6. Secure cable to seat frame with straps.
7. Fit lumbar mechanism cover.
8. Ensure squab pad is positioned and reposition squab cover.
9. Secure cover hooks to seat frame.
10. Secure cover edge with hog rings.
11. Secure squab cover retainer to seat frame.
12. Fit edge clips securing cover to frame.
13. Fit front seat. See this section.
