REAR SEAT BELT - CENTRE

Service repair no - 76.73.20

Remove

  1. Fold rear seat cushion forward.
  2. Release buckles and belt from clips in rear squab.

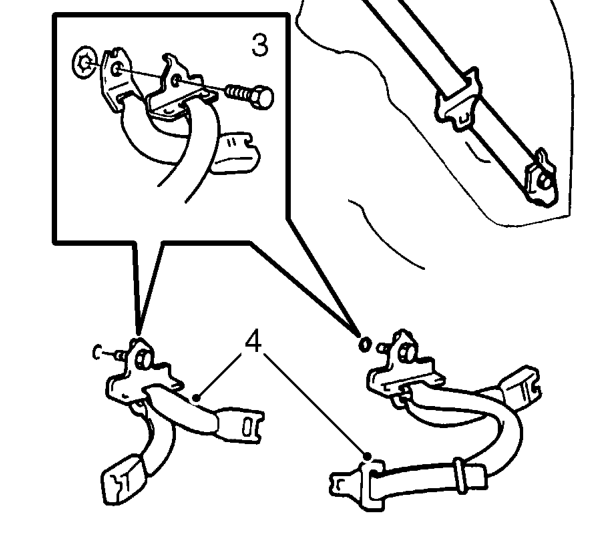

Rear seat belt - centre – Release buckles and belt from clips in rear squab.
  1. Remove 2 bolts securing buckles and belt to body. Note position of side belt buckles.
  2. Remove buckle and belt.

Refit

  1. Position centre buckle to side buckle.
  2. Align buckles to body, fit bolt and tighten to 32 Nm.
  3. Position centre belt to side buckle.
  4. Align buckle and belt to body, fit bolt and tighten to 32 Nm.
  5. Secure buckles and belt to squab clips.
  6. Fold rear seat cushion to position. Check that the seat catch has engaged properly.

REAR SEAT BELT - SIDE

Service repair no - 76.73.23

Remove

  1. Remove D/E post finisher. See Interior trim components.

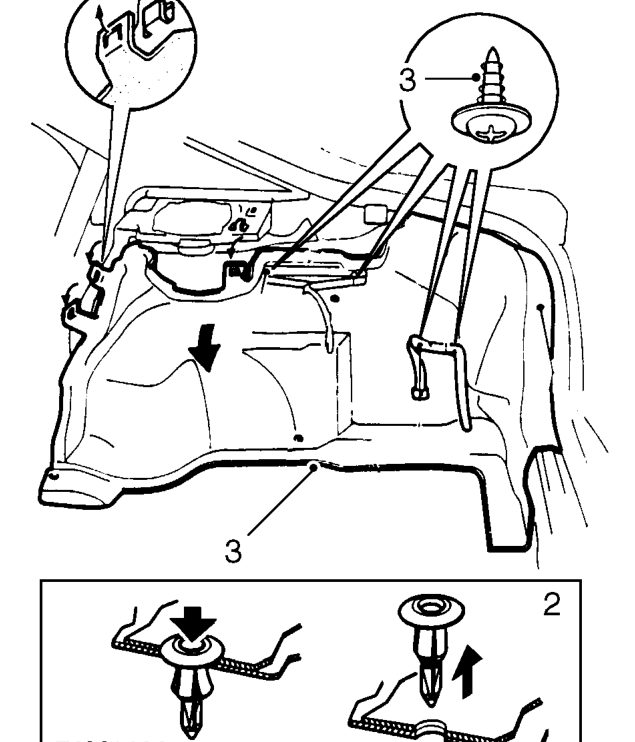

Rear seat belt - side – Remove D/E post finisher. See Interior trim components.
  1. Depress centre pins and remove luggage compartment side carpet retaining studs.
  2. Remove 4 screws and remove carpet.
