REAR SEAT BELT - CENTRE - 4 DOOR

Service repair no - 76.73.20

Remove

  1. Remove both rear speakers. See ELECTRICAL, Repairs.
  2. Remove rear seat cushion. See this section.
  3. Remove both ’D’ post upper trim finishers. See Interior trim components.
Rear seat belt - centre - 4 door – Remove both ’D’ post upper trim finishers. See Interior trim components.

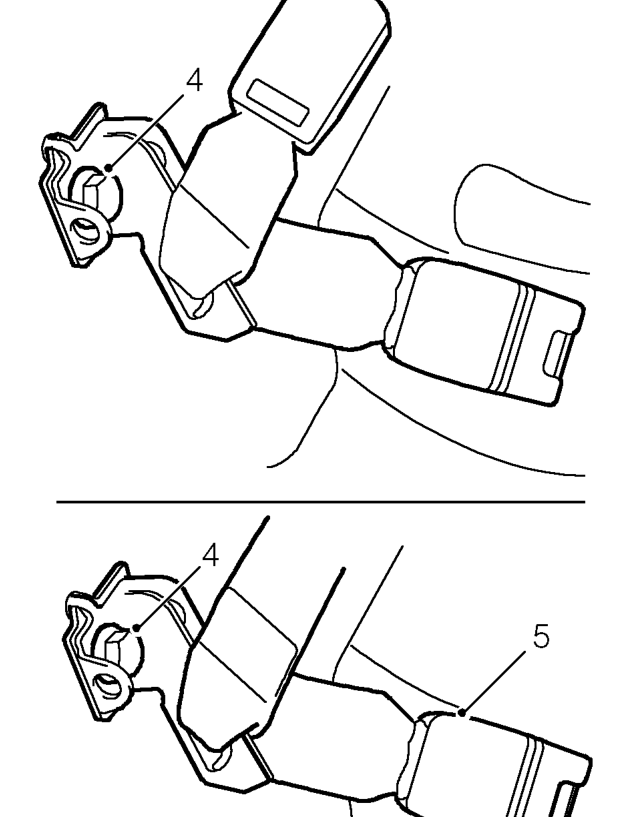

  1. Remove 2 bolts securing centre seat belt buckle and belt to floor.
  2. Remove seat belt buckle.
Rear seat belt - centre - 4 door – Remove seat belt buckle.

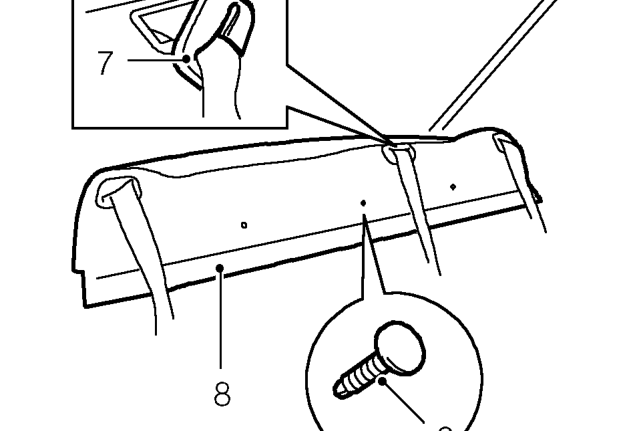

  1. Remove 5 trim fixings securing parcel tray to body.
  2. Release centre seat belt guide from parcel tray and remove guide.
  3. Release parcel tray to gain access to centre seat belt reel.
Rear seat belt - centre - 4 door – Release parcel tray to gain access to centre seat belt reel.

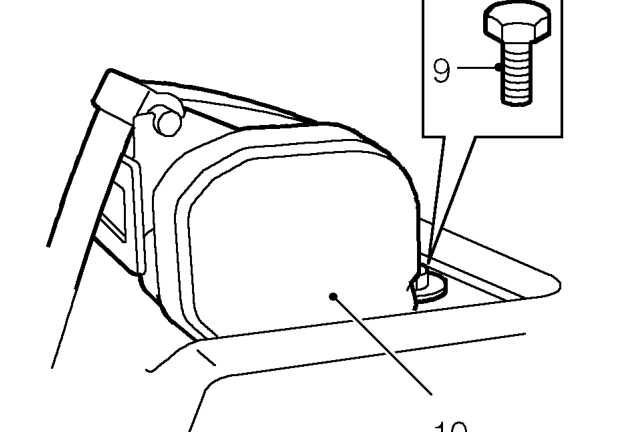

  1. Remove bolt securing centre seat belt reel to parcel tray panel.
  2. Remove centre seat belt reel.
