Rear seat belt - centre (page 2 of 2)

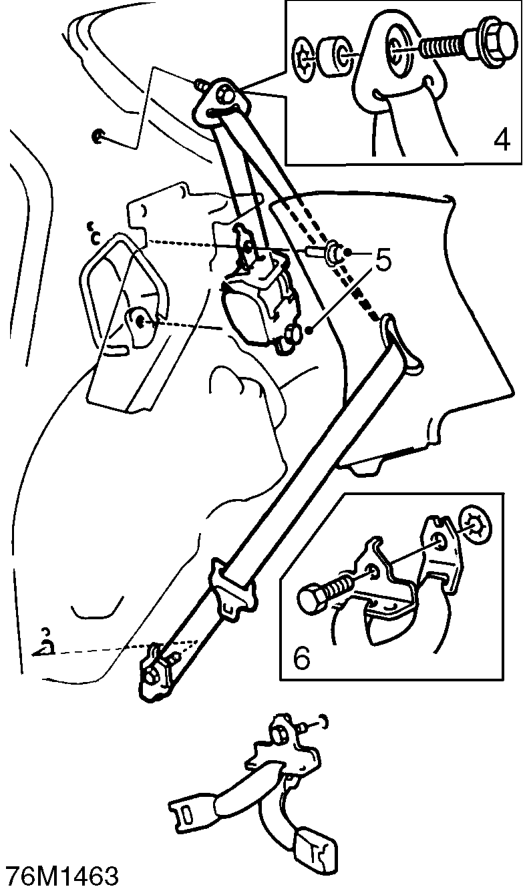

4. Remove bolt securing seat belt upper anchorage bolt.
5. Remove 2 bolts securing reel to body and remove reel assembly.
6. Remove bolt securing seat belt buckle to floor.
7. Remove seat belt buckle.

Refit

1. Position seat belt buckle and tighten bolt to 32 Nm.
2. Position belt reel to body, fit and tighten top bolt to 9 Nm and lower bolt to 32 Nm.
3. Extend seat belt to upper anchorage, fit and tighten bolt to 32 Nm.
4. Fit luggage compartment side carpet, fit screws and retaining studs.
5. Fit D/E post finisher. See Interior trim components.
