Workshop Manuals Factory service & repair Rover
Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Front squab cover

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Seats and seat belts › Front squab cover
BodyFront squab cover · page 1 of 3

Refit

  1. Position valance, fit and tighten screws.
  2. Fit recline and height adjustment handwheels.
  3. Fit retaining screws and screw covers.
  4. Reposition the seat.

FRONT SQUAB COVER

Service repair no - 78.90.08

Remove

  1. Remove front seat. See this section.
Front squab cover – Remove front seat. See this section.

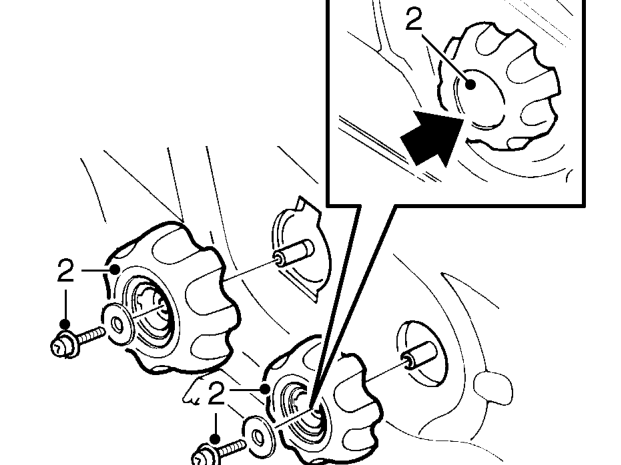

  1. Remove screw caps from recline and height adjust handwheels. Using a Torx bit, remove screws and handwheels.
