Front squab cover (page 3 of 3)

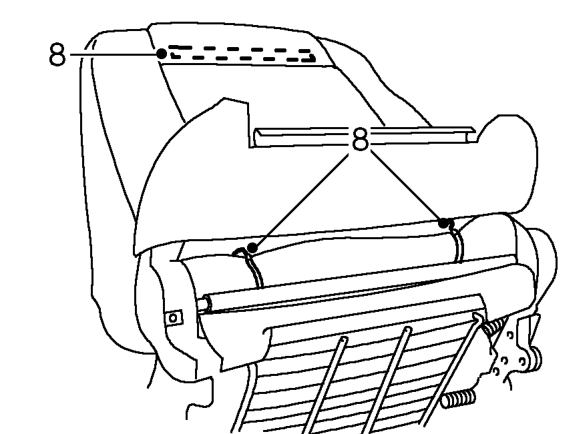

8. Release cover hooks and retainer from frame rear bar.

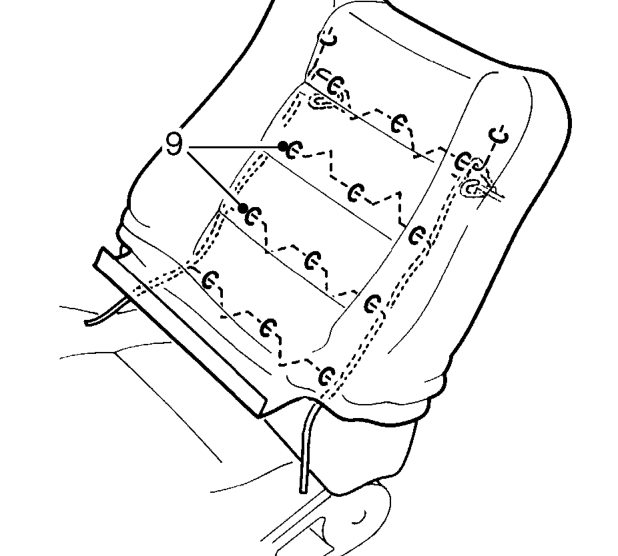

9. Remove 12 hog rings cover to squab pad.

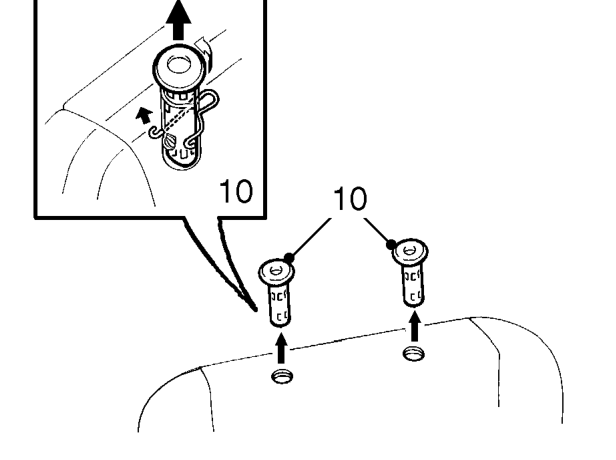

10. Remove clips from head restraint guides and remove guides.
11. Remove squab cover.

Refit

1. Position squab cover, fit head restraint guides and fit clips.
2. Secure cover retainer to frame bar.
3. Pull cover to position and secure with new hog rings.
4. Secure cover lower retainer and fit edge clips.
5. Fit head restraint.
6. Position cushion inner and outer valance and fit retaining screws.
7. Fit recline and height adjust handwheels.
8. Fit retaining screws and screw covers.
9. Fit front seat. See this section.
