Rover 400 Body Repair Manual (1995-2000)05 · Body
05 · Body & interior

Front squab cover (page 2 of 3)

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Seats and seat belts
BodyFront squab cover · page 2 of 3
Diagram
  1. Remove 7 screws and remove cushion inner and outer valance.
Remove 7 screws and remove cushion inner and outer valance.

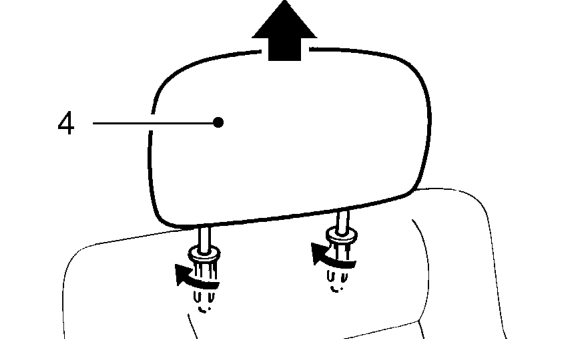

  1. Turn head restraint guides through 90° and remove head restraint.
Turn head restraint guides through 90° and remove head restraint.

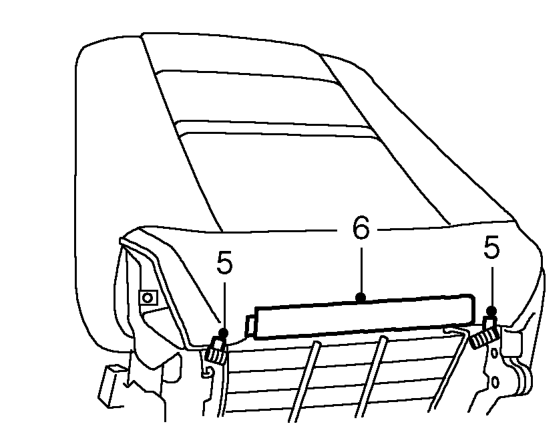

  1. Remove 2 edge clips cover to frame.
  2. Release cover retainer from lower edge and rear bar of frame.
Release cover retainer from lower edge and rear bar of frame.

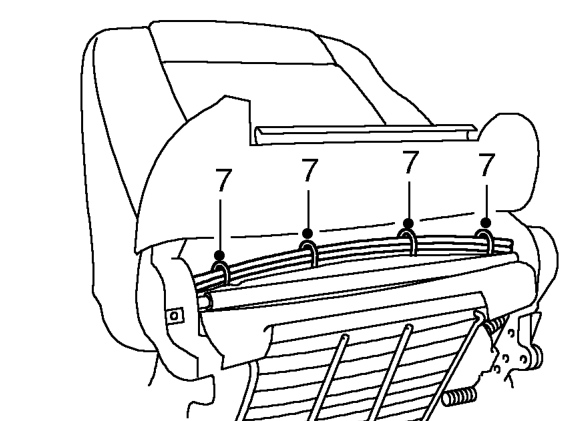

  1. Remove 4 hog rings securing cover edge.
