Crankshaft rear oil seal

Refit

1. Using a lint free cloth, thoroughly clean oil seal recess in oil pump and running surface on crankshaft.

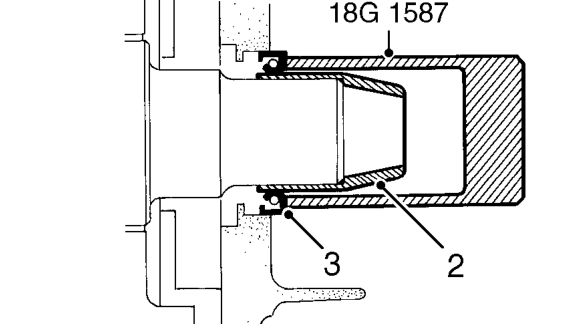

2. Fit oil seal guide, from seal kit, over end of crankshaft.
3. Position new seal on crankshaft up against oil pump housing. Drift seal into place using tool 18G 1587.

CAUTION: Oil seal must be fitted dry.

4. Remove tool 18G 1587 and oil seal guide.
5. Clean crankshaft gear.
6. Fit crankshaft gear to crankshaft.
7. Fit camshaft timing belt. See this section.

CRANKSHAFT REAR OIL SEAL

Service repair no - 12.21.20

Remove

1. Remove flywheel. See this section.

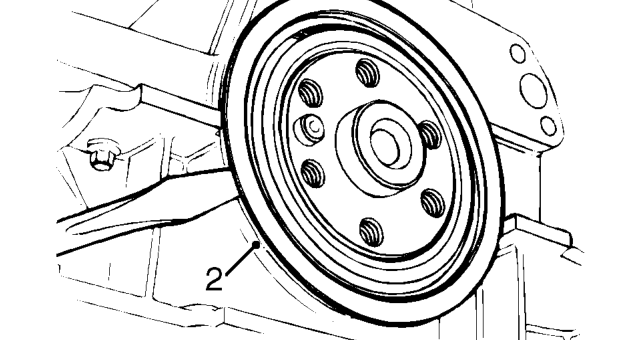

2. Using a burr free flat ended screwdriver, ease crankshaft rear oil seal from cylinder block, remove and discard oil seal.

CAUTION: Do not mark sealing surface on crankshaft.

Refit

1. Remove all traces of oil and sealant from cylinder block, oil seal recess and running surface on crankshaft.

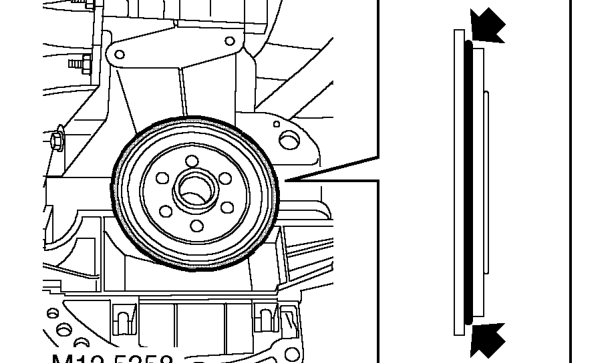

2. Apply a l.5 mm continuous bead of sealant, Part No. GAC 8000 to replacement oil seal as shown.

CAUTION: Do not apply oil or grease to any part of oil seal or running surface of crankshaft. Seal must be fitted immediately after applying sealant.
