CAMSHAFT TIMING BELT UPPER COVER

Service repair no - 12.65.41

Remove

  1. Disconnect battery earth lead.

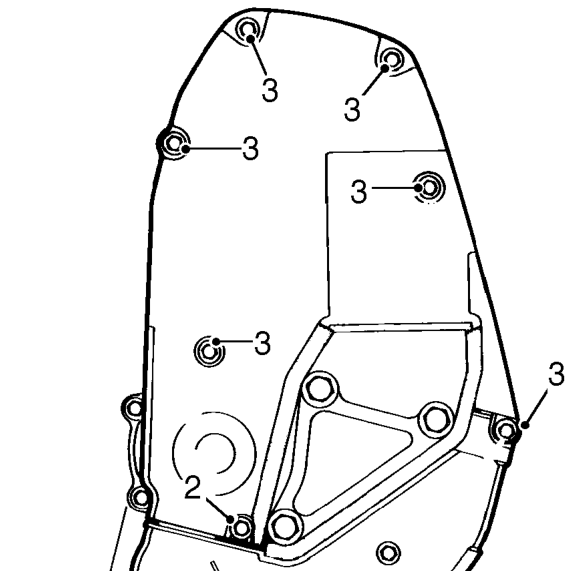

Camshaft timing belt upper cover – Disconnect battery earth lead.
  1. Loosen lower bolt securing camshaft timing belt upper cover to engine.
  2. Remove 6 bolts securing camshaft timing belt upper cover to rear cover.
  3. Remove camshaft timing belt upper cover and rubber seal.

Refit

  1. Clean camshaft timing belt upper cover.
  2. Position timing belt upper cover, ensuring correct position of rubber seal.
  3. Fit bolts securing camshaft timing belt upper cover to rear cover and tighten to 5 Nm.
  4. Tighten bolt securing camshaft timing belt upper cover to engine to 5 Nm.
  5. Connect battery earth lead.

CAMSHAFT TIMING BELT LOWER COVER

Service repair no - 12.65.43

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove camshaft timing belt upper cover. See this section.
  2. Remove crankshaft front pulley. See this section.
Camshaft timing belt lower cover – Remove crankshaft front pulley. See this section.
  1. Remove 3 bolts securing RH torque mounting bracket to engine.
  2. Remove RH torque mounting bracket.
