Engine - K SeriesCamshaft timing belt upper cover · page 2 of 2

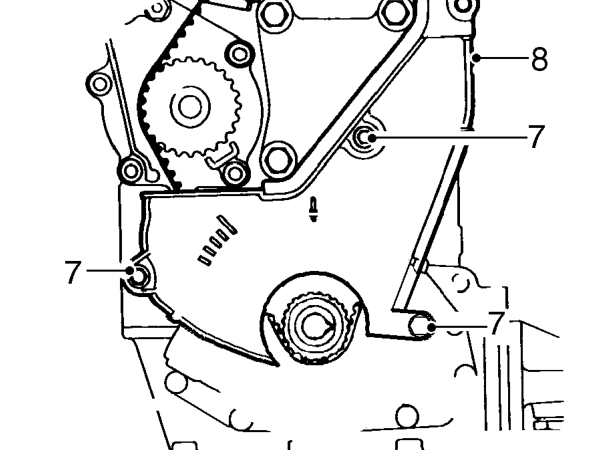

7. Remove 3 bolts securing timing belt lower cover to engine.
8. Remove timing belt lower cover.

Refit

1. Fit timing belt lower cover to engine.
2. Fit bolts securing cover to engine and tighten to 5 Nm.
3. Fit crankshaft front pulley. See this section.
4. Fit camshaft timing belt upper cover. See this section.
5. Remove stand(s) and lower vehicle.
6. Connect battery earth lead.

04 Engine
