Engine LH mounting

ENGINE LH MOUNTING

Service repair no - 12.45.30

Remove

1. Disconnect battery earth lead.
2. Remove air cleaner. See WORKSHOP MANUAL - ENGINE MANAGEMENT SYSTEM - MEMS, Adjustments.
3. Fit wooden block to jack and position jack to support engine.

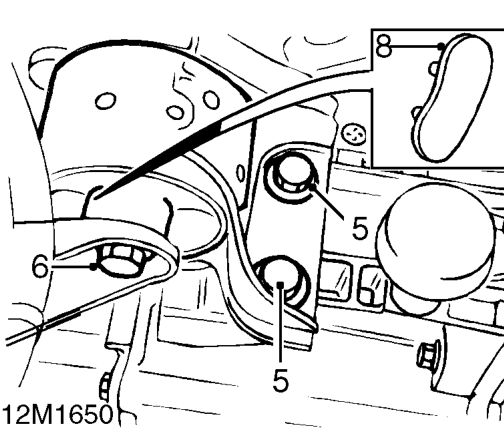

4. Release evaporative emission canister from mounting bracket.

5. Remove 2 bolts securing engine LH mounting to gearbox.
6. Remove through bolt securing engine LH mounting to body.
7. Remove engine LH mounting.
8. Remove 2 mounting rubbers from body.

Refit

1. Fit 2 mounting rubbers to bracket on body.
2. Fit engine LH mounting to body and gearbox.
3. Fit through bolt securing engine LH mounting to body but do not tighten.
4. Align gearbox to engine mounting, fit 2 bolts and tighten to 80 Nm.
5. Tighten through bolt securing engine LH mounting to body to 75 Nm.
6. Secure evaporative emission canister to mounting bracket.
7. Lower jack supporting power unit, and remove from beneath vehicle.
8. Fit air cleaner. See WORKSHOP MANUAL - ENGINE MANAGEMENT SYSTEM - MEMS, Adjustments.
9. Connect battery earth lead.

ENGINE RH MOUNTING

Service repair no - 12.45.31

Remove

1. Disconnect battery earth lead.

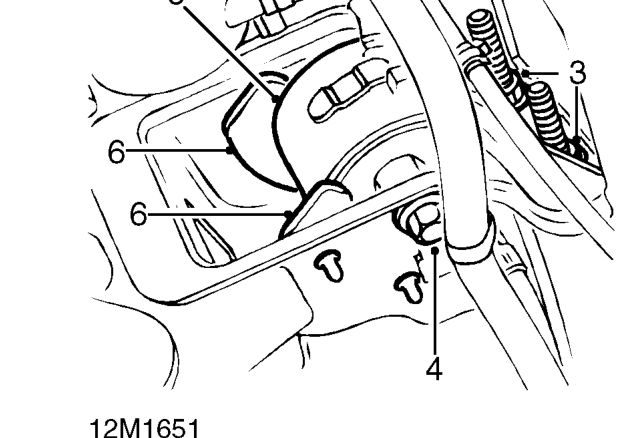

2. Fit wooden block to jack and position jack to support engine.

3. Remove and discard 2 nuts securing engine RH mounting to engine.
4. Remove through bolt securing engine RH mounting to body.
5. Remove engine RH mounting.
6. Remove 2 mounting rubbers from body.

Refit

1. Fit 2 mounting rubbers to bracket on body.
2. Fit engine RH mounting to body and engine.
3. Fit through bolt securing engine RH mounting to body but do not tighten.
4. Fit 2 NEW nuts securing engine RH mounting to engine and tighten to 100 Nm.
5. Tighten through bolt securing engine RH mounting to body to 75 Nm.
6. Lower jack supporting power unit, and remove from beneath vehicle.
7. Connect battery earth lead.
