Sunroof relay (page 4 of 4)

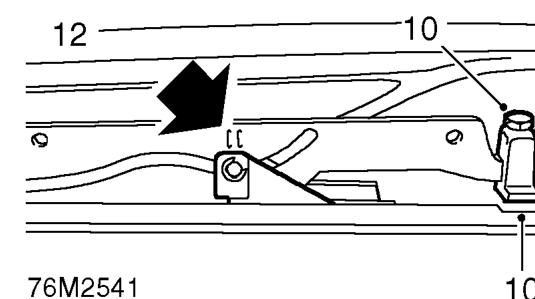

10. Position culisse with its adjustable stop directly above slot in slide.
11. Check both culisse are correctly timed.
12. Adjust stop screws as necessary: Loosen stop screw, align to marks and position stop screw clamp to rear of slot, tighten clamp screw to 3.5 Nm.

NOTE: Stop should just contact plastic pad as it enters slide.

13. Fit drain channel and tighten screws to 2.5 Nm.
14. Fit sunroof frame assembly. See this section.

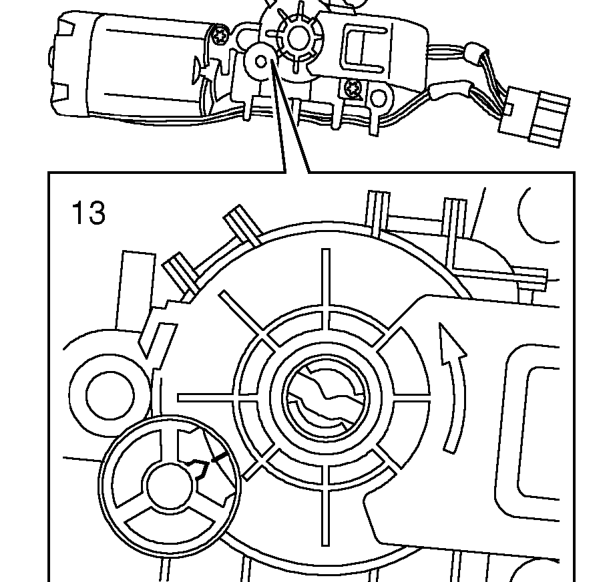

15. Check motor is correctly timed. Slot in idle cam aligned with gear. Adjust using key from tool kit or flat bladed screwdriver.
16. Carefully position motor and engage drive cables, tighten screws to 4 Nm.
17. Fit connector to bracket and connect multiplug.
18. Fit sunroof glass. See this section.
19. Check operation of sunroof.
20. Refit headlining. See this section.
