Radiator - with air conditioning

RADIATOR - WITH AIR CONDITIONING

Service repair no - 26.40.01.20

Remove

1. Drain cooling system. See Adjustments.

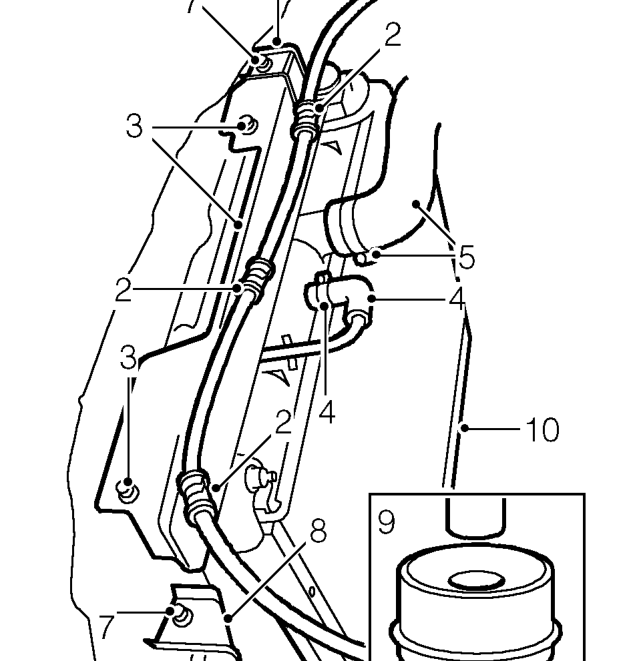

2. Release throttle cable from clips on bonnet platform closing panel, position cable to one side.
3. Remove screws from bonnet platform closing panel and remove panel.
4. Loosen clip and disconnect coolant expansion tank hose from radiator.
5. Loosen clip and disconnect top hose from radiator.
6. Position expansion tank and top hoses to one side.
7. Remove 2 bolts securing radiator top mounting brackets to bonnet platform.
8. Remove 2 radiator top mounting brackets.
9. Release radiator from 2 lower mountings.
10. Remove radiator from vehicle. Do not carry out further dismantling if component is removed for access only.
11. Remove 2 lower mounting rubbers from old radiator.
12. Fit lower mounting rubbers to new radiator.

Refit

1. Manoeuvre radiator into position and locate on lower mountings.
2. Fit top mountings to radiator and align to body.
3. Fit bolts securing radiator top mountings to bonnet platform.
4. Connect top hose to radiator and tighten clip.
5. Connect coolant expansion tank hose to radiator and tighten clip.
6. Fit bonnet platform closing panel and secure with screws.
7. Secure throttle cable to clips on bonnet platform closing panel.
8. Refill cooling system. See Adjustments.
