RADIATOR COOLING FAN

Service repair no - 26.25.22

Remove

  1. Disconnect battery earth lead.

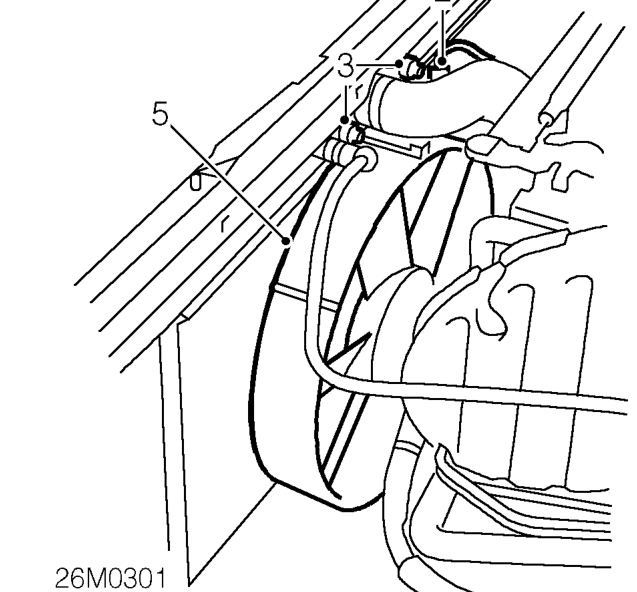

Radiator cooling fan – Disconnect battery earth lead.
  1. Disconnect multiplug from radiator cooling fan.
  2. Remove 2 nuts securing top of cooling fan housing to radiator.
  3. Release cooling fan housing from stud on radiator.
  4. Manoeuvre cooling fan housing around radiator top hose and remove from vehicle.

Refit

  1. Manoeuvre cooling fan housing around radiator top hose and into position on radiator stud.
  2. Fit nuts securing cooling fan housing to radiator and tighten to 9 Nm.
  3. Connect multiplug to radiator cooling fan.
  4. Connect battery earth lead.

FAN AND MOTOR UNIT RH - WITH AIR CONDITIONING

Service repair no - 26.25.34

Remove

  1. Disconnect battery earth lead.
  2. Remove condenser. See AIR CONDITIONING, Repairs.
  3. Remove front bumper. See BODY, Exterior fittings.

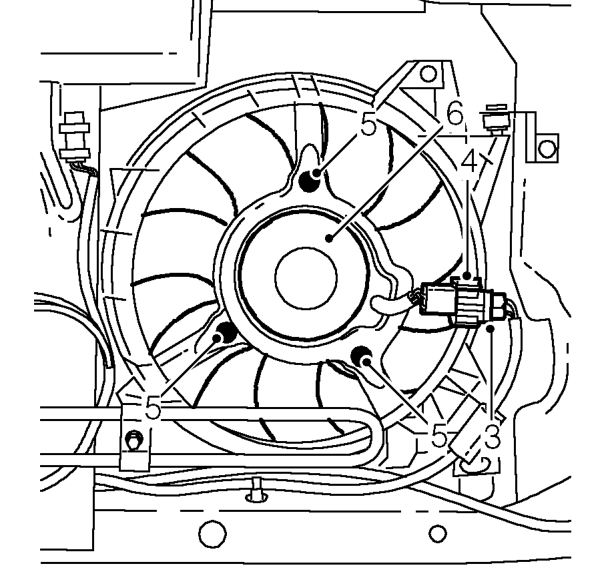

Fan and motor unit rh - with air conditioning – Remove front bumper. See BODY, Exterior fittings.
  1. Disconnect multiplug from radiator cooling fan.
  2. Release multiplug from cooling fan housing.
  3. Remove 3 nuts and washers securing cooling fan to cooling fan housing.
  4. Remove radiator cooling fan.

Refit

  1. Fit radiator cooling fan to cooling fan housing.
  2. Fit 3 nuts securing cooling fan to cooling fan housing and tighten to 9 Nm.
  3. Connect multiplug to cooling fan housing.
  4. Connect multiplug to radiator cooling fan.
  5. Fit front bumper. See BODY, Exterior fittings.
  6. Fit condenser. See AIR CONDITIONING, Repairs.
  7. Connect battery earth lead.
