Intake air filter

INTAKE AIR FILTER

Service repair no - 80.15.42.20

The intake air filter should be renewed every 12,000 miles (20,000 km) or 12 months whichever comes first. In hot or dusty climates the filter may require renewing more often.

Remove

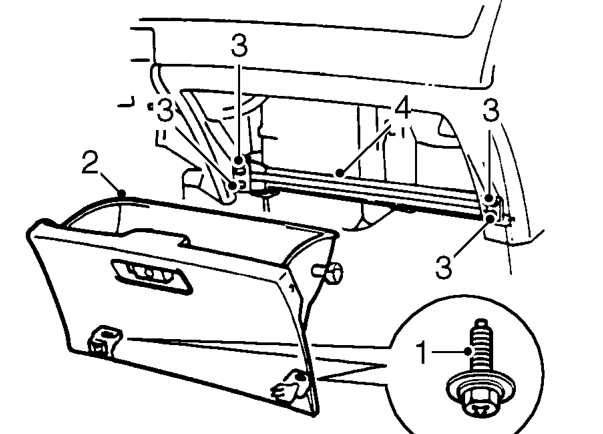

1. Remove 2 screws securing glove box to lower fascia rail.
2. Release glove box catch and remove glove box from fascia.
3. Remove 4 screws securing lower rail to fascia.
4. Remove lower fascia rail.

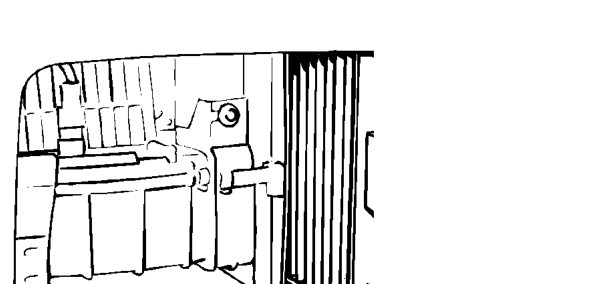

5. Release 2 clips and remove cover from evaporator housing.
6. Remove and discard intake air filter.

NOTE: Direction of air flow arrow.

Refit

1. Fit new intake air filter to evaporator housing, ensuring arrow indicating direction of air flow is facing the correct way.
2. Clean intake air filter cover.
3. Fit intake air filter cover.
4. Fit lower fascia rail and secure with screws.
5. Fit and align glove box to fascia.
6. Fit and tighten 2 screws securing glove box to lower fascia rail.
