Trinary pressure switch
- Make
- Rover
- Model
- 400 Workshop Manual
- Year
- 1995–2000
- Section
- Repairs › Trinary pressure switch
Air conditioningTrinary pressure switch · page 1 of 3
TRINARY PRESSURE SWITCH
Service repair no - 82.20.04
NOTE: Because the receiver drier has to be replaced whenever the air conditioning system is opened, the trinary pressure switch is included in the procedure for renewing the receiver drier. See this section.
EVAPORATOR
Service repair no - 82.25.20
Remove

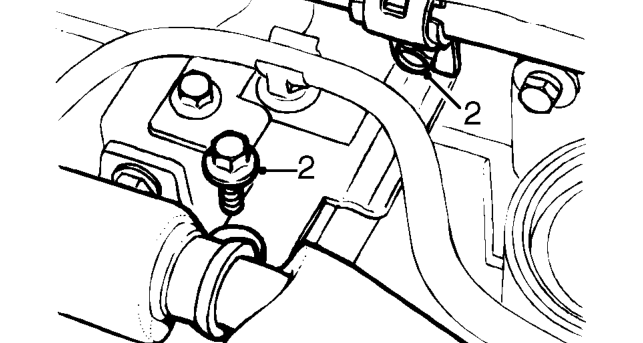

- Recover refrigerant from air conditioning system. See Adjustments.
- LH drive: Remove 2 screws and release pipes from support bracket.
- Remove bolt securing air conditioning pipe1 connection to evaporator, use /4 in drive with universal connector and extension.
