Condenser cooling fan - ’l’ series

Refit

1. Fit compressor and manoeuvre onto mounting bracket.
2. Fit 2 upper through bolts and nuts securing compressor to mounting bracket.
3. Fit 2 lower through bolts and nuts securing compressor to mounting bracket.
4. Tighten compressor mounting bolts to 45 Nm.
5. Clean compressor and pipe connections.
6. Remove caps from compressor and pipe connections.
7. Lubricate 2 new ’O’ rings with refrigerant oil and fit to compressor.
8. Position air conditioning pipe union to compressor, fit securing bolt and tighten to 45 Nm.
9. Connect multiplug to compressor.
10. Connect PAS pipe to union on PAS pump.
11. Connect bracket to secure PAS pipe to A/C compressor.
12. Top-up PAS reservoir. See STEERING, Adjustments.
13. Remove spillage container from under vehicle.
14. Fit alternator. See ELECTRICAL, Repairs.
15. Replace receiver drier. See this section.
16. Remove stand(s) and lower vehicle.
17. Recharge air conditioning system. See Adjustments.

CONDENSER COOLING FAN - ’L’ SERIES

Service repair no - 82.15.01

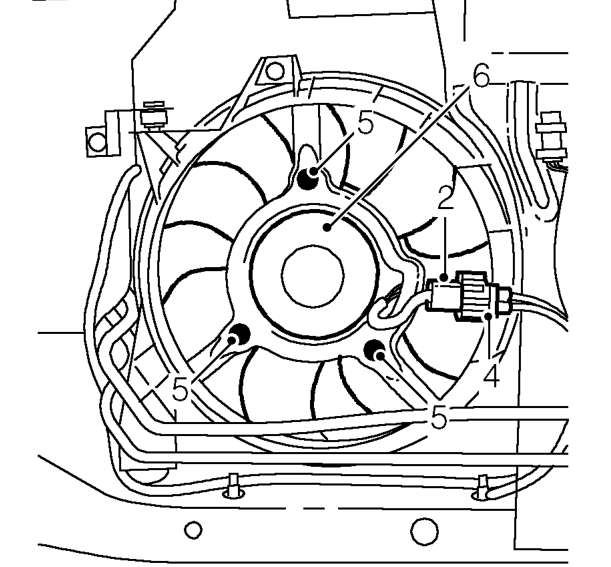

Remove

1. Remove condenser. See this section.
2. Remove front bumper. See BODY, Exterior fittings.

3. Disconnect multiplug from condenser cooling fan.
4. Release multiplug from cooling fan housing.
5. Remove 3 nuts and washers securing cooling fan to cooling fan housing.
6. Remove condenser cooling fan.

Refit

1. Fit condenser cooling fan to cooling fan housing.
2. Fit 3 nuts securing cooling fan to cooling fan housing and tighten to 9 Nm.
3. Connect multiplug to cooling fan housing.
4. Connect multiplug to condenser cooling fan.
5. Fit front bumper. See BODY, Exterior fittings.
6. Fit condenser. See this section.
