Receiver drier - ’t’ series

Refit

1. Clean air conditioning pipe connections.
2. Lubricate NEW ’O’ rings with refrigerant oil and fit to air conditioning pipes.
3. Remove caps from NEW condenser and fit to old condenser.
4. Fit air conditioning pipes to condenser.
5. Fit 2 bolts securing air conditioning pipes to condenser and tighten to 5 Nm.
6. Manoeuvre condenser into position and locate on lower mountings on condenser fan housing.
7. Fit 2 bolts securing condenser to condenser fan housing and tighten to 9 Nm.
8. Remove caps from condenser pipe and compressor pipe.
9. Clean condenser pipe and compressor pipe unions.
10. Lubricate NEW ’O’ ring with refrigerant oil and fit to condenser pipe.
11. Connect condenser pipe to compressor pipe and tighten union to 25 Nm .

CAUTION: To prevent damage to air conditioning pipes or components use a two backing spanner when loosening or tightening unions.

12. Renew receiver drier. See this section.
13. Fit radiator. See COOLING SYSTEM, Repairs.
14. Recharge air conditioning system. See Adjustments.

RECEIVER DRIER - ’T’ SERIES

Service repair no - 82.17.03

Remove

1. Recover refrigerant from air conditioning system. See Adjustments.
2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
3. Remove bolt securing air intake hose to battery tray.

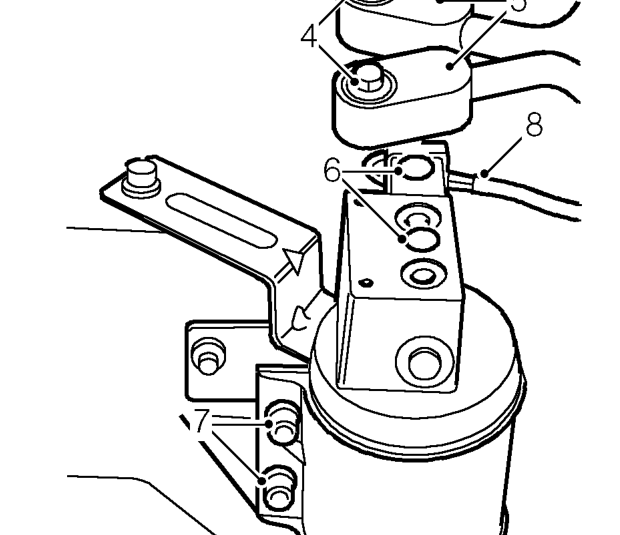

4. Remove 2 bolts securing air conditioning pipe connections to receiver drier.
5. Disconnect air conditioning pipe connections from receiver drier.
6. Remove and discard 2 ’O’ rings from air conditioning pipe connections.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

7. Remove 2 Allen screws securing receiver drier into mounting bracket.
8. Rotate receiver drier 45°, disconnect multiplug from trinary pressure switch.
9. Remove receiver drier.
