Coolant expansion tank - ’k’ and ’t’ series

COOLANT EXPANSION TANK - ’K’ AND ’T’ SERIES

Service repair no - 26.15.01

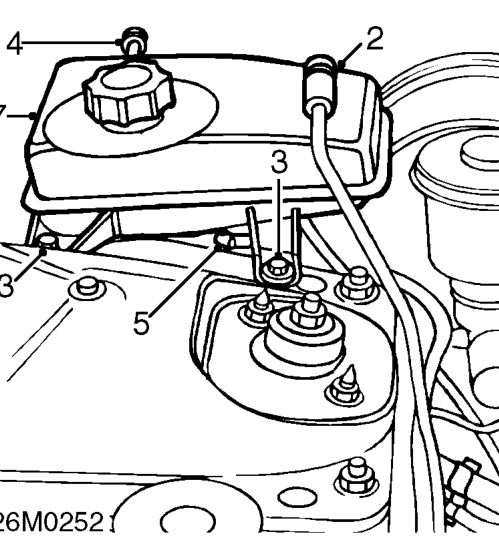

Remove

1. Position container to collect fluid loss from expansion tank.

2. Loosen clip and disconnect hose from expansion tank.
3. Remove 2 bolts securing expansion tank to body.
4. Release expansion tank from body.
5. Loosen clip and disconnect coolant feed hose from expansion tank.
6. Allow coolant to drain from expansion tank.
7. Remove coolant expansion tank.

Refit

1. Position coolant expansion tank.
2. Connect coolant feed hose to expansion tank and tighten clip.
3. Locate expansion tank on body.
4. Fit 2 bolts securing expansion tank to body and tighten to 9 Nm.
5. Connect hose to expansion tank and tighten clip.
6. Top-up cooling system. See MAINTENANCEMaintenance.
7. Remove container positioned to catch fluid loss.

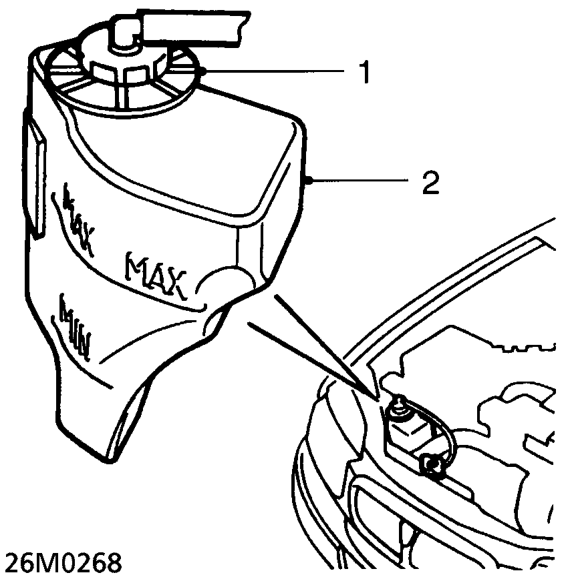

COOLANT EXPANSION TANK - ’D’ SERIES

Service repair no - 26.15.01

Remove

1. Release hose from expansion tank filler cap.
2. Remove expansion tank from retaining bracket.

Refit

1. Fit expansion tank and connect hose to filler cap.
2. Fill expansion tank to ’MAX’ mark with the correct anti-freeze solution. See MAINTENANCEMaintenance.
