Rover 400 Workshop Manual (1995-2000)14 · Cooling system
14 · Engine

Thermostat - ’t’ series with air conditioning

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Thermostat - ’t’ series with air conditioning
Cooling systemThermostat - ’t’ series with air conditioning

Refit

  1. Remove all traces of gasket from thermostat housing and cover.
  2. Fit thermostat.

CAUTION: Ensure support legs of thermostat are positioned away from heater outlet pipe.

  1. Fit NEW gasket to thermostat housing.
  2. Position thermostat housing cover, fit bolts and tighten to 25 Nm.

NOTE: Secure bracket to thermostat cover retaining bolt.

  1. Refill cooling system. See Adjustments.

THERMOSTAT - ’T’ SERIES WITH AIR CONDITIONING

Service repair no - 26.45.09/20

Remove

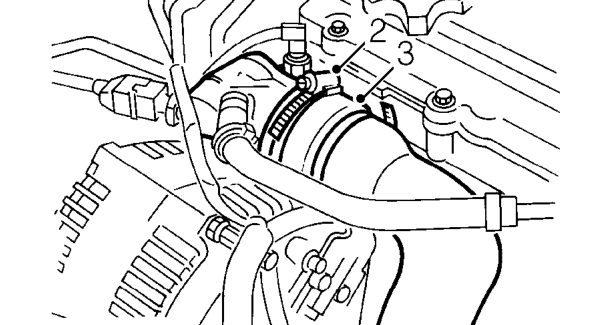

  1. Drain cooling system. See Adjustments.
Thermostat - ’t’ series with air conditioning – Drain cooling system. See Adjustments.
  1. Loosen clip securing radiator top hose to thermostat housing.
  2. Release top hose from thermostat housing and remove clip.

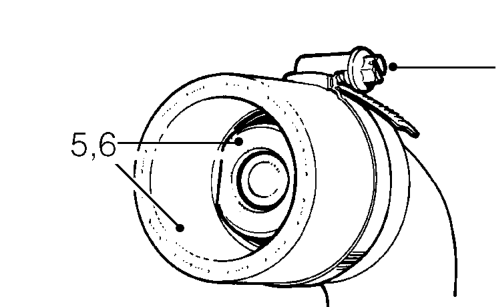

Thermostat - ’t’ series with air conditioning – Release top hose from thermostat housing and remove clip.
  1. Remove clip securing thermostat in top hose.
  2. Apply liquid soap to top hose and thermostat to assist removal.
  3. Remove thermostat.

Refit

  1. Clean top hose.
  2. Fit thermostat to top hose.
  3. Position thermostat retaining clip and tighten.
  4. Connect top hose to thermostat housing and secure with clip.
  5. Refill cooling system. See Adjustments.
