Cooling systemRadiator - ’k’ series without air conditioning

RADIATOR - ’K’ SERIES WITHOUT AIR CONDITIONING

Service repair no - 26.40.01

Remove

  1. Drain cooling system. See Adjustments.
Radiator - ’k’ series without air conditioning – Drain cooling system. See Adjustments.

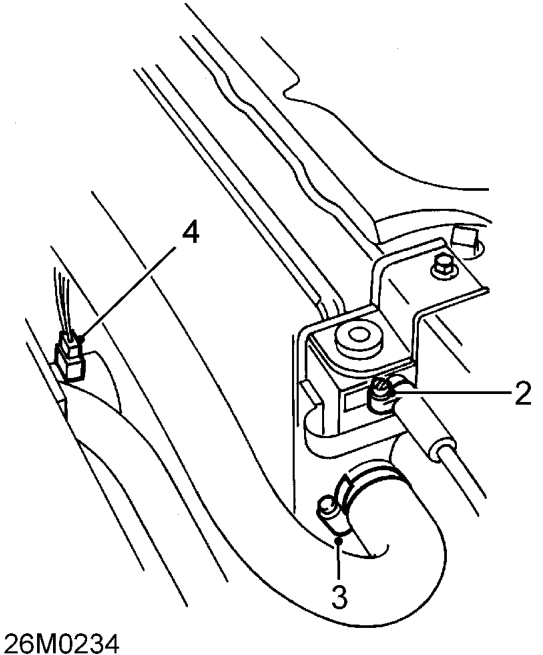

  1. Loosen clip and disconnect coolant expansion tank hose from radiator.
  2. Loosen clip and disconnect top hose from radiator.
  3. Disconnect multiplug from radiator cooling fan.
Radiator - ’k’ series without air conditioning – Disconnect multiplug from radiator cooling fan.

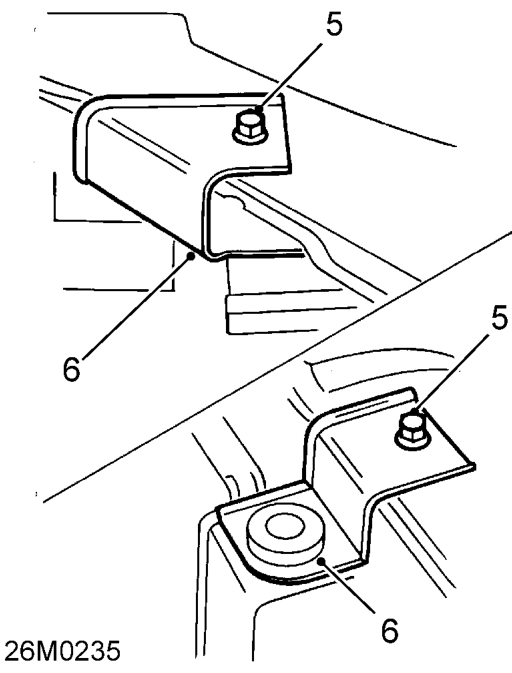

  1. Remove 2 bolts securing radiator top mounting brackets to bonnet platform.
  2. Remove 2 radiator top mounting brackets.
Radiator - ’k’ series without air conditioning – Remove 2 radiator top mounting brackets.

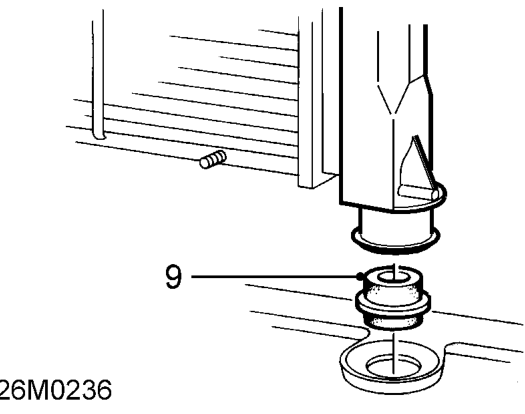

  1. Release radiator from 2 lower mountings.
  2. Remove radiator from vehicle. Do not carry out further dismantling if component is removed for access only.
  3. Remove 2 lower mounting rubbers from radiator.
