Radiator cooling fan - ’k’ series without air conditioning

Refit

1. Position radiator and locate to lower mountings.
2. Fit top mounting to radiator and align to body.
3. Fit bolt securing radiator top mounting to bonnet platform, tighten to 10 Nm.
4. Connect multiplug to radiator cooling fan.
5. Connect top hose to radiator and secure clip.
6. Position coolant expansion tank and connect hose to radiator.
7. Position oil cooler hoses to radiator and secure clips.
8. Refill cooling system. See Adjustments.
9. Check and top up gearbox oil. See MAINTENANCEMaintenance.

RADIATOR COOLING FAN - ’K’ SERIES WITHOUT AIR CONDITIONING

Service repair no - 26.25.22

Remove

1. Disconnect battery earth lead.

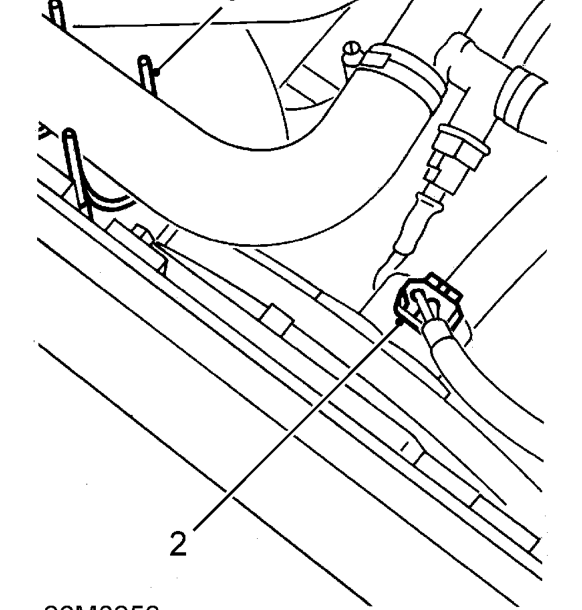

2. Disconnect multiplug from radiator cooling fan.

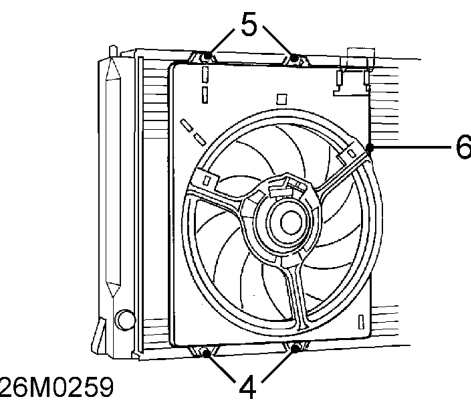

3. Release radiator top hose from clip on cooling fan housing and position top hose aside.

4. Remove 2 nuts securing bottom of cooling fan housing to radiator.
5. Remove 2 nuts securing top of cooling fan housing to radiator.
6. Release cooling fan housing from studs on radiator.
7. Manoeuvre cooling fan housing around radiator top hose and remove from vehicle.
