Radiator - ’k’ series with air conditioning

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Radiator - ’k’ series with air conditioning
Cooling systemRadiator - ’k’ series with air conditioning · page 1 of 3

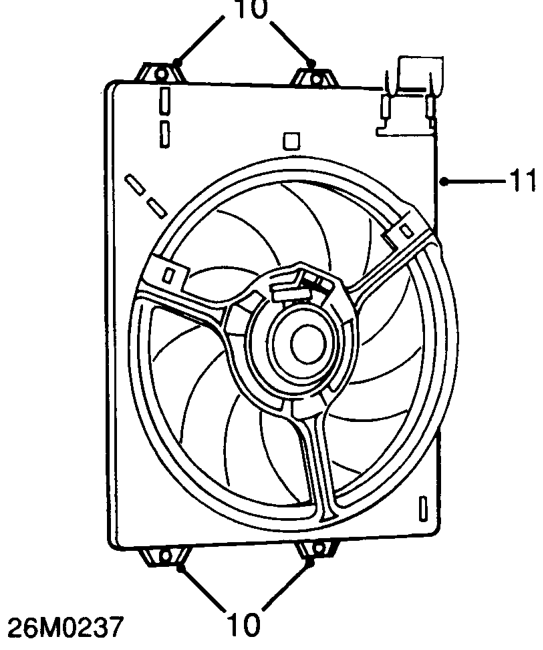

Diagram
  1. Remove 4 nuts securing cooling fan housing to radiator.
  2. Remove cooling fan housing.
  3. Fit cooling fan housing to new radiator, fit nuts and tighten to 9 Nm.
  4. Fit lower mounting rubbers to new radiator.

Refit

  1. Manoeuvre radiator into position and locate on lower mountings.
  2. Fit top mountings to radiator and align to body.
  3. Fit bolts securing radiator top mountings to bonnet platform.
  4. Connect multiplug to radiator cooling fan.
  5. Connect top hose to radiator and tighten clip.
  6. Connect coolant expansion tank hose to radiator and tighten clip.
  7. Refill cooling system. See Adjustments.

RADIATOR - ’K’ SERIES WITH AIR CONDITIONING

Service repair no - 26.40.01.20

Remove

  1. Drain cooling system. See Adjustments.

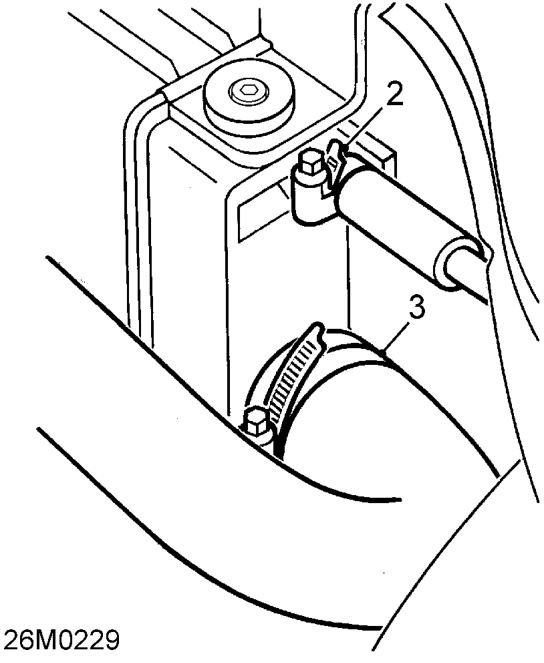

Radiator - ’k’ series with air conditioning – Drain cooling system. See Adjustments.
  1. Loosen clip and disconnect coolant expansion tank hose from radiator.
  2. Loosen clip and disconnect top hose from radiator.
