Radiator - ’k’ series with air conditioning (page 3 of 3)

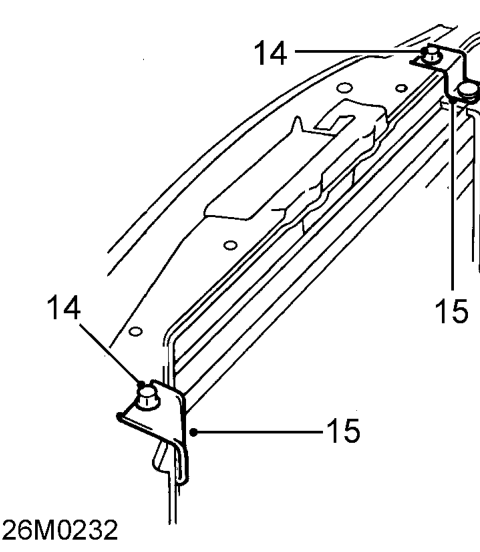

14. Remove 2 bolts securing radiator top mounting brackets to bonnet platform.
15. Remove 2 radiator top mounting brackets.

16. Release radiator from 2 lower mountings.
17. Remove radiator from vehicle. Do not carry out further dismantling if component is removed for access only.

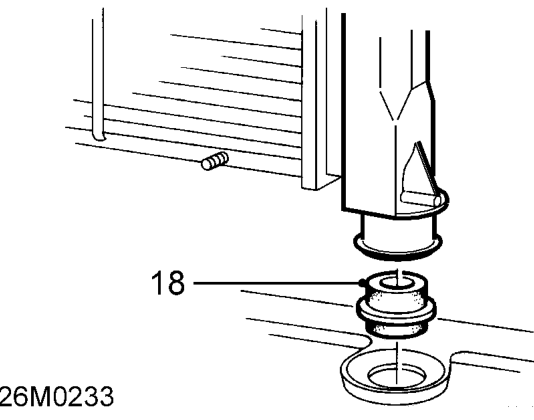

18. Remove 2 lower mounting rubbers from old radiator.
19. Fit lower mounting rubbers to new radiator.

Refit

1. Manoeuvre radiator into position and locate on lower mountings.
2. Fit top mountings to radiator and align to body.
3. Fit bolts securing radiator top mountings to bonnet platform.
4. Manoeuvre cooling fan housing around air conditioning pipe and into position on radiator studs.
5. Fit 4 nuts securing cooling fan housing to radiator and tighten to 9 Nm.
6. Align air conditioning pipe to cooling fan housing, fit nut and tighten to 9 Nm.
7. Connect multiplug to coolant temperature sensor.
8. Fit radiator top hose to coolant outlet elbow and align orientation marks.
9. Tighten clip securing radiator top hose to coolant outlet elbow.
10. Connect multiplug to radiator cooling fan.
11. Connect top hose to radiator and tighten clip.
12. Connect coolant expansion tank hose to radiator and tighten clip.
13. Refill cooling system. See Adjustments.
