Rover 400 Workshop Manual (1995-2000)14 · Cooling system
14 · Engine

Thermostat - ’d’ series

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Thermostat - ’d’ series
Cooling systemThermostat - ’d’ series

THERMOSTAT - ’D’ SERIES

Service repair no - 26.45.09

Remove

  1. Drain cooling system. See Adjustments.

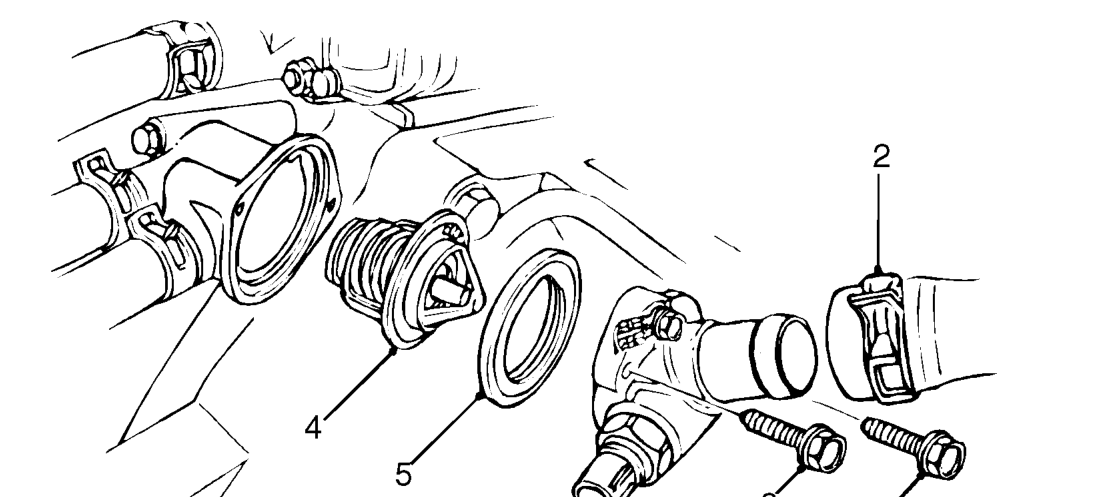

Thermostat - ’d’ series – Drain cooling system. See Adjustments.
  1. Release clip and disconnect bottom hose from thermostat housing.
  2. Remove 2 bolts securing thermostat cover, and move cover aside.
  3. Remove thermostat.
  4. Remove rubber seal from thermostat.

Refit

  1. Clean mating faces of thermostat and cover.
  2. Fit rubber seal to thermostat.
  3. Fit thermostat to housing.

NOTE: Location lugs on rubber seal.

  1. Fit thermostat housing cover and tighten bolts to 10 Nm. Ensure earth cables are in place.
  2. Connect bottom hose to thermostat housing and secure with clip.
  3. Fit hose to support clips.
  4. Refill cooling system. See Adjustments.
