Rover 400 Workshop Manual (1995-2000)14 · Cooling system
14 · Engine

Coolant pump - ’t’ series without air conditioning

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Coolant pump - ’t’ series without air conditioning
Cooling systemCoolant pump - ’t’ series without air conditioning · page 1 of 2

COOLANT PUMP - ’T’ SERIES WITHOUT AIR CONDITIONING

Service repair no - 26.50.01

Remove

  1. Drain cooling system. See Adjustments.
  2. Slacken clip and disconnect coolant hose from coolant pump.

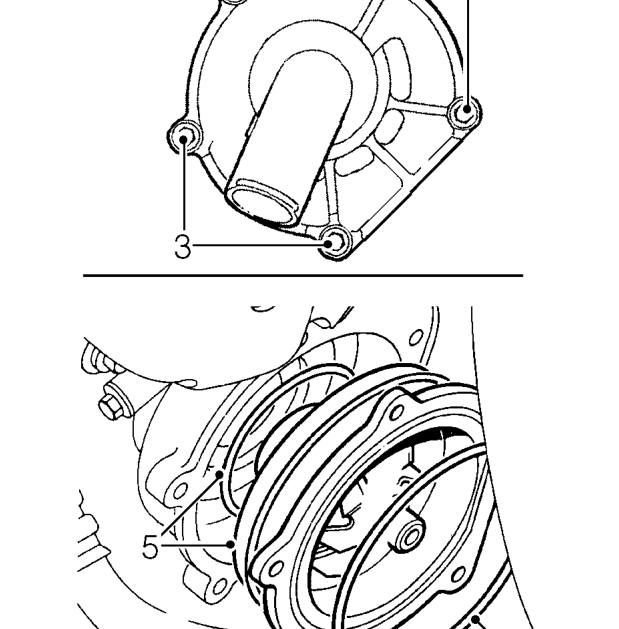

Coolant pump - ’t’ series without air conditioning – Slacken clip and disconnect coolant hose from coolant pump.
  1. Remove 5 bolts securing cover and coolant pump.
  2. Remove cover and discard ’O’ ring.
  3. Remove coolant pump from housing, discard ’O’ ring.

Refit

  1. Clean coolant pump housing and mating faces.
  2. Lubricate NEW ’O’ rings with Loctite 405 and fit to coolant pump and coolant pump cover.
  3. Fit coolant pump to cover, align bolt holes.
  4. Fit coolant pump and cover, fit bolts bolts and tighten to 45 Nm.
  5. Connect coolant hose to pump and secure clip.
  6. Refill cooling system. See Adjustments.

COOLANT PUMP - ’T’ SERIES WITH AIR CONDITIONING

Service repair no - 26.50.01/20

Remove

  1. Drain cooling system. See Adjustments.

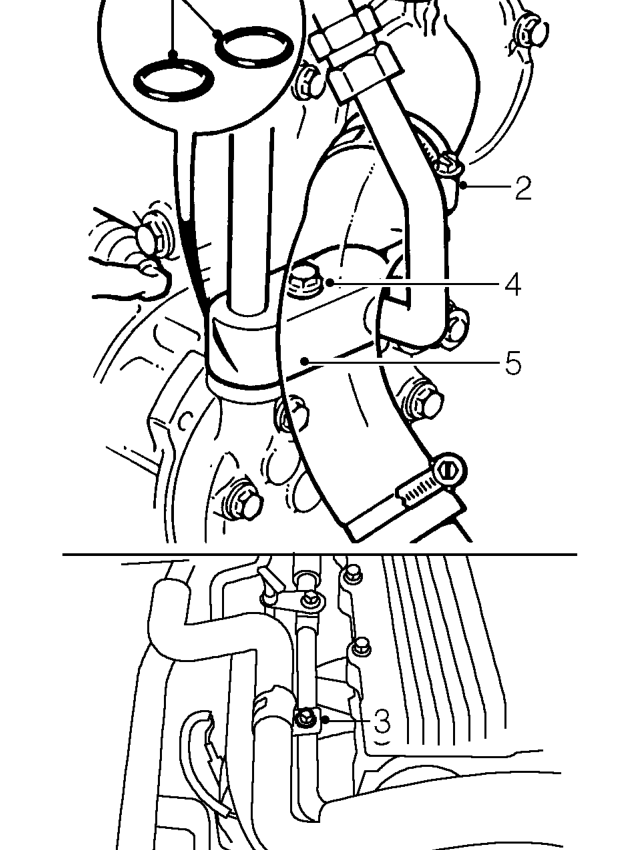

Coolant pump - ’t’ series with air conditioning – Drain cooling system. See Adjustments.
  1. Slacken clip and release hose from coolant pump housing.

CAUTION: Plug hose and housing.

  1. Remove bolt securing air conditioning pipe clip to coolant rail.
  2. Remove bolt securing air conditioning pipes to compressor.
