Rover 400 Workshop Manual (1995-2000)14 · Cooling system
14 · Engine

Radiator - ’d’ series

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Radiator - ’d’ series
Cooling systemRadiator - ’d’ series

RADIATOR - ’D’ SERIES

Service repair no - 26.40.01

Remove

  1. Drain cooling system. See Adjustments.

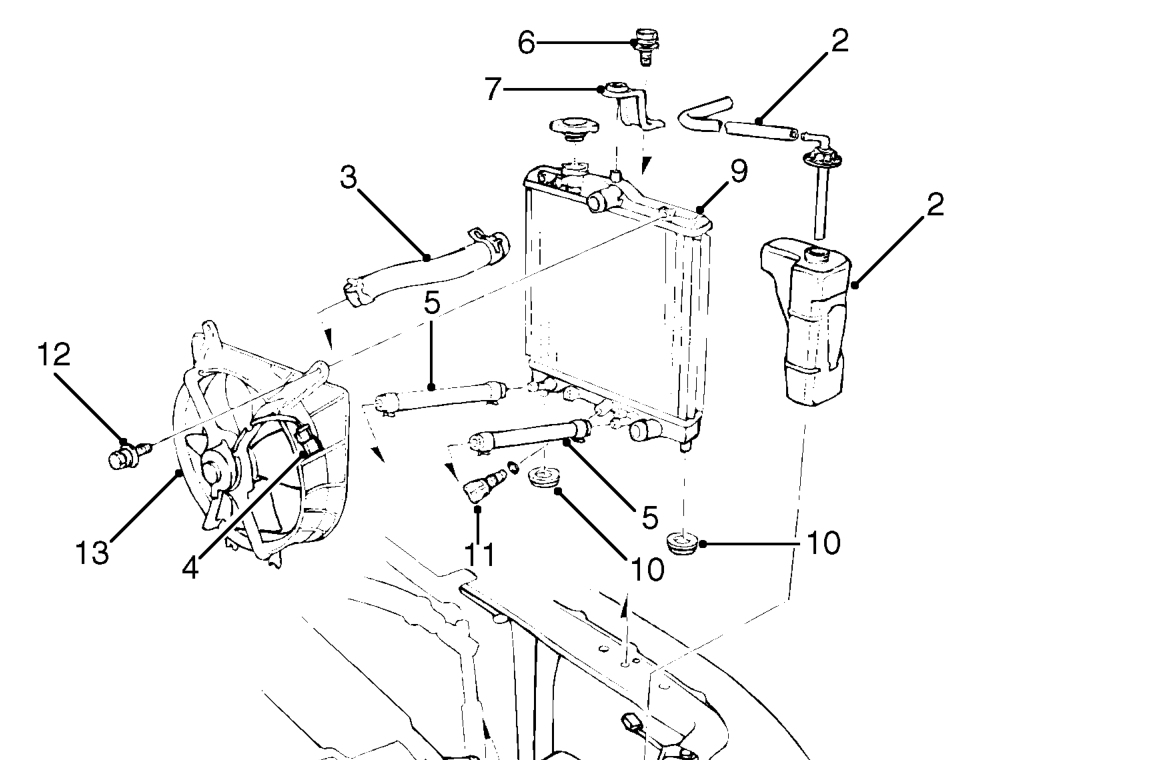

Radiator - ’d’ series – Drain cooling system. See Adjustments.
  1. Release expansion tank hose from radiator and remove tank from mounting bracket.
  2. Release clip and disconnect top hose from radiator.
  3. Disconnect multiplug from radiator cooling fan.
  4. Release clips and disconnect oil cooler hoses from radiator.
  5. Remove bolt securing radiator top mounting bracket to bonnet platform.
  6. Remove radiator top mounting bracket.
  7. Release radiator from 2 lower mountings.
  8. Remove radiator from vehicle.

Do not carry out further dismantling if component is removed for access only.

  1. Remove 2 lower mounting rubbers from radiator.
  2. Remove drain plug from radiator.
  3. Remove 4 bolts securing cooling fan cowl to radiator.
  4. Remove cooling fan cowl.
  5. Fit cooling fan cowl to new radiator, fit bolts and tighten to 5 Nm.
  6. Fit lower mounting rubbers to new radiator.
  7. Fit drain plug to new radiator.
