Workshop Manuals Factory service & repair Rover
Rover 400 Workshop Manual (1995-2000)14 · Cooling system
14 · Engine

Radiator - ’t’ series

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Radiator - ’t’ series
Cooling systemRadiator - ’t’ series

RADIATOR - ’T’ SERIES

Service repair no - 26.40.01

Remove

  1. Remove radiator cooling fan. See this section.
  2. Drain cooling system, See Adjustments.
Radiator - ’t’ series – Drain cooling system, See Adjustments.

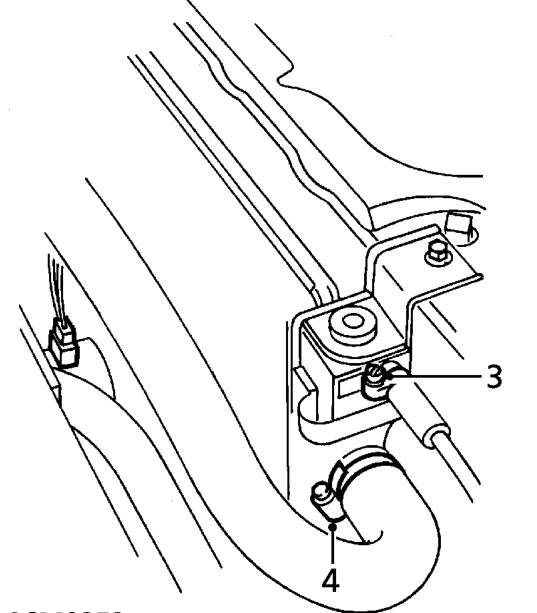

  1. Loosen clip and disconnect coolant expansion tank hose from radiator.
  2. Loosen clip and disconnect top hose from radiator.
Radiator - ’t’ series – Loosen clip and disconnect top hose from radiator.

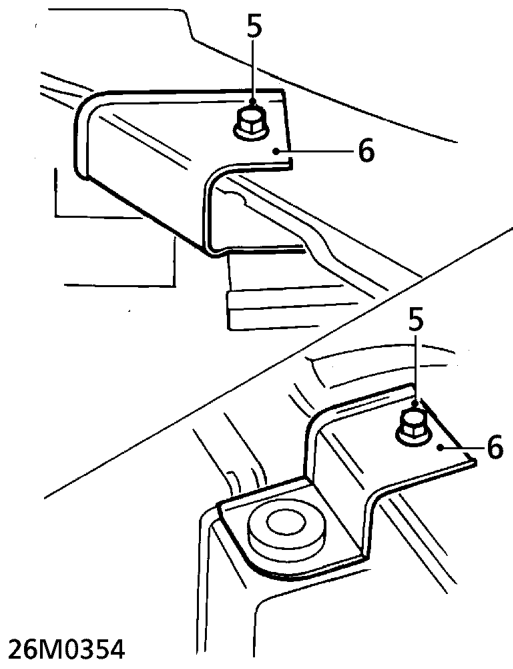

  1. Remove 2 bolts securing radiator top mounting brackets to bonnet platform.
  2. Remove 2 radiator top mounting brackets.
Radiator - ’t’ series – Remove 2 radiator top mounting brackets.

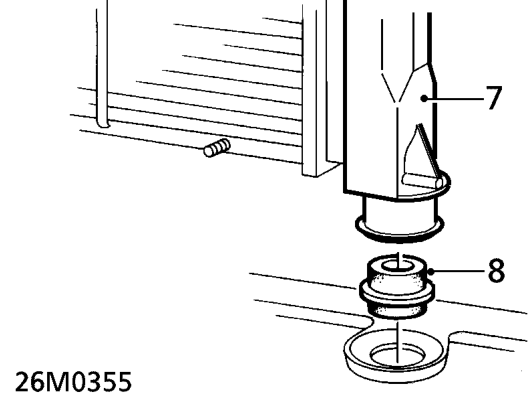

  1. Release radiator from 2 lower mountings.
  2. Remove radiator from vehicle. Do not carry out further dismantling if component is removed for access only.
  3. Remove 2 lower mounting rubbers from radiator.
  4. Fit lower mounting rubbers to NEW radiator.
