COOLANT PUMP - ’D’ SERIES - 97.5 MY ON

Service repair no - 26.50.01

Remove

  1. Drain cooling system. See Adjustments.
  2. Remove camshaft timing belt. See ENGINE - ’D’ SERIES, Repairs.

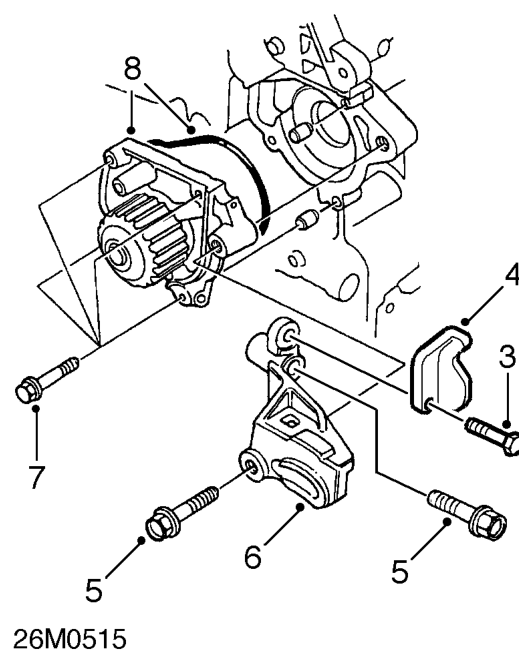

Coolant pump - ’d’ series - 97.5 my on – Remove camshaft timing belt. See ENGINE - ’D’ SERIES, Repairs.
  1. Remove bolt securing fuel rail support bracket.
  2. Remove support bracket.
  3. Remove 2 bolts securing alternator bracket to coolant pump and cylinder head.
  4. Move bracket clear of coolant pump.
  5. Remove 4 bolts securing coolant pump.
  6. Remove coolant pump, remove and discard ’O’ ring.

Refit

  1. Clean coolant pump and cylinder block mating faces.
  2. Fit NEW ’O’ ring to coolant pump.
  3. Fit pump and tighten bolts to 12 Nm.
  4. Align alternator bracket, fit bolts and tighten to 44 Nm.
  5. Fit fuel rail support bracket, fit bolt and tighten to 44 Nm.
  6. Fit timing belt. See ENGINE - ’D’ SERIES, Repairs.
  7. Refill cooling system,See Adjustments.
