Coolant pump - ’t’ series without air conditioning (page 2 of 2)

5. Release air conditioning pipes from compressor.
6. Remove and discard ’O’ ring seals.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

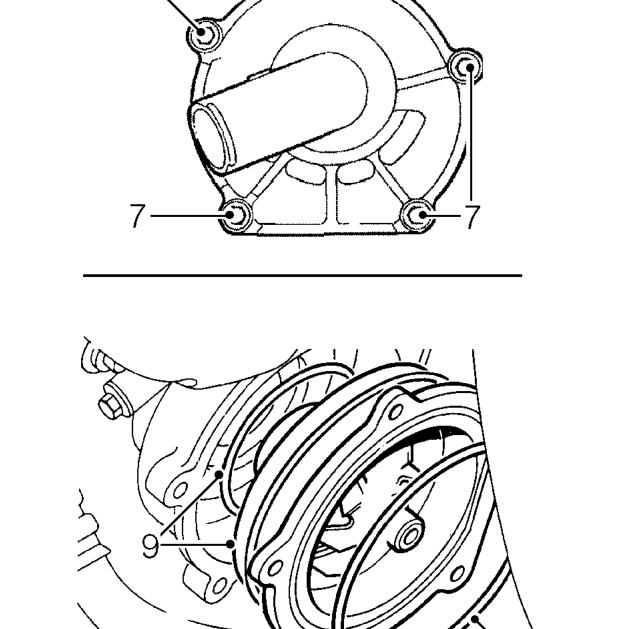

7. Remove 5 bolts securing cover to coolant pump.
8. Remove cover and discard ’O’ ring seal.
9. Remove coolant pump from housing and discard ’O’ ring seals.

Refit

1. Clean coolant pump housing and mating faces.
2. Lubricate NEW ’O’ rings with Loctite 405 and fit to coolant pump and coolant pump cover.
3. Fit coolant pump and cover.
4. Fit 5 bolts and tighten to 45 Nm.
5. Clean air conditioning compressor and pipes.
6. Lubricate NEW ’O’ ring seals with clean refrigerant oil.
7. Fit ’O’ ring seals to compressor.
8. Fit pipe to compressor and tighten bolt to 45 Nm.
9. Fit bolt air conditioning pipe clip to water rail.
10. Connect coolant hose to pump housing and tighten clip.
11. Renew receiver drier. See AIR CONDITIONING, Repairs.
12. Refill cooling system. See Adjustments.
