Radiator cooling fan - ’t’ series

RADIATOR COOLING FAN - ’T’ SERIES

Service repair no - 26.25.22

Remove

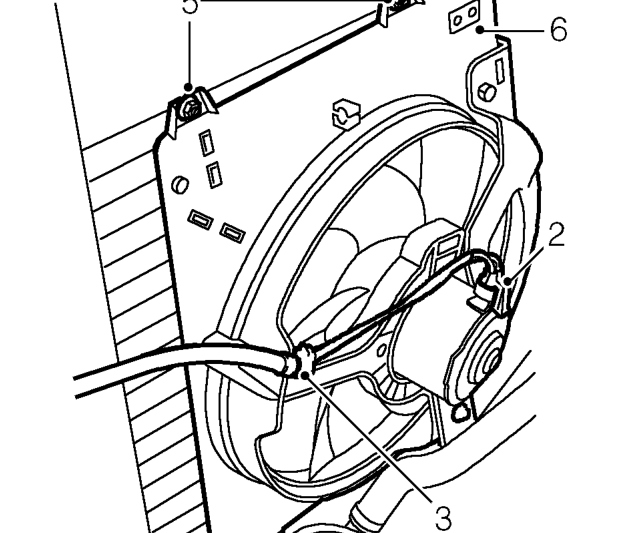

1. Disconnect battery earth lead.

2. Disconnect multiplug from cooling fan motor.
3. Release harness from cooling fan cowl clip.
4. Models with air conditioning: Remove screw securing air conditioning pipe bracket to radiator fan cowl.
5. Remove 4 nuts securing cooling fan to radiator.
6. Release cooling fan from lower mounting studs and remove fan assembly. Do not carry out further dismantling if component is removed for access only.
7. Remove 2 screws securing fan heatshield.
8. Remove heatshield from fan cowl.
9. Fit heatshield to fan cowl, fit screws and tighten.

Refit

1. Fit cooling fan assembly to radiator and position to mounting studs.
2. Fit nuts securing cooling fan to radiator and tighten to 9 Nm.
3. Connect multiplug to cooling fan motor and secure harness to cowl clip.
4. Models fitted with air conditioning: Position air conditioning pipe bracket to radiator cooling fan cowl, fit screw and tighten.
5. Connect battery earth lead.
