Air conditioningCompressor

COMPRESSOR

Service repair no - 82.10.20

Remove

  1. Recover refrigerant from air conditioning system. See Adjustments.
  2. Disconnect battery earth lead.
  3. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove alternator. See ELECTRICAL, Repairs.

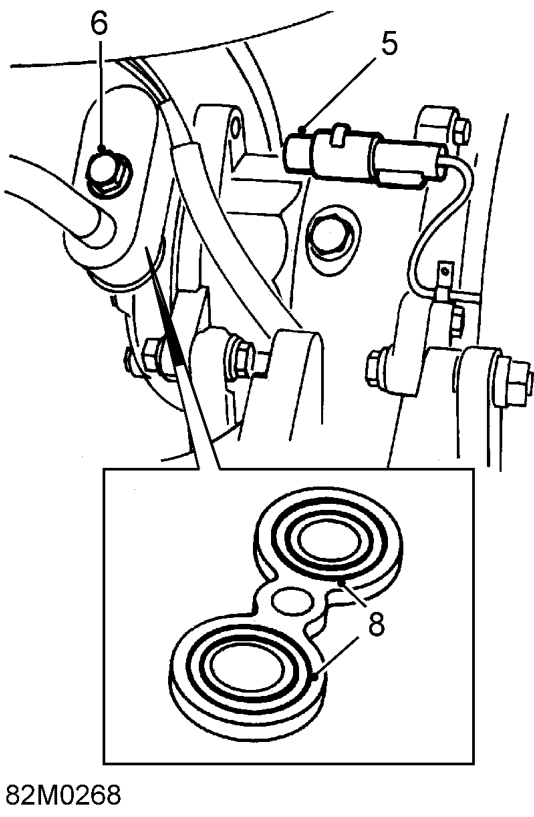

Compressor – Remove alternator. See ELECTRICAL, Repairs.
  1. Disconnect multiplug from air conditioning compressor.
  2. Remove bolt securing air conditioning pipe union to compressor.
  3. Release air conditioning pipe union from compressor.
  4. Remove and discard 2 ’O’ ring seals from compressor.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

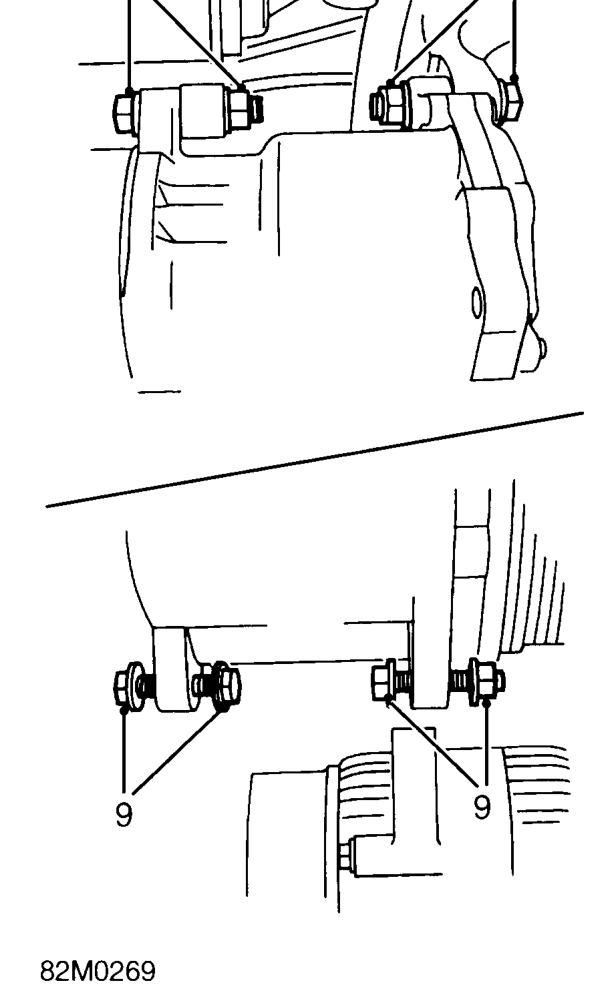

Compressor – Remove and discard 2 ’O’ ring seals from compressor.
  1. Remove 2 lower through bolts and nuts securing compressor to engine.
  2. Remove 2 upper through bolts and nuts securing compressor to engine.
  3. Manoeuvre compressor from mounting bracket, remove compressor from beneath vehicle.
