Condenser cooling fan

CONDENSER COOLING FAN

Service repair no - 82.15.01

Remove

1. Recover refrigerant from air conditioning system. See Adjustments.
2. Remove condenser. See this section.
3. Remove front bumper. See BODY, Exterior fittings.

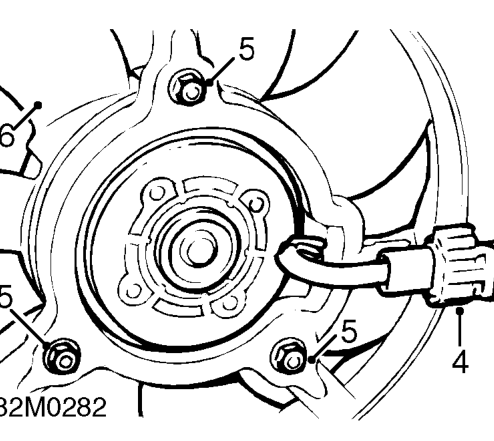

4. Disconnect multiplug from condenser cooling fan.
5. Remove 3 nuts securing cooling fan to cooling fan housing.
6. Remove condenser cooling fan.

Refit

1. Fit condenser cooling fan to cooling fan housing.
2. Fit 3 nuts securing cooling fan to cooling fan housing and tighten to 9 Nm.
3. Connect multiplug to condenser cooling fan.
4. Fit front bumper. See BODY, Exterior fittings.
5. Fit condenser. See this section.
6. Recharge air conditioning system. See Adjustments.

CONDENSER

Service repair no - 82.15.07

Remove

1. Recover refrigerant from air conditioning system. See Adjustments.
2. Remove radiator. See COOLING SYSTEM, Repairs.

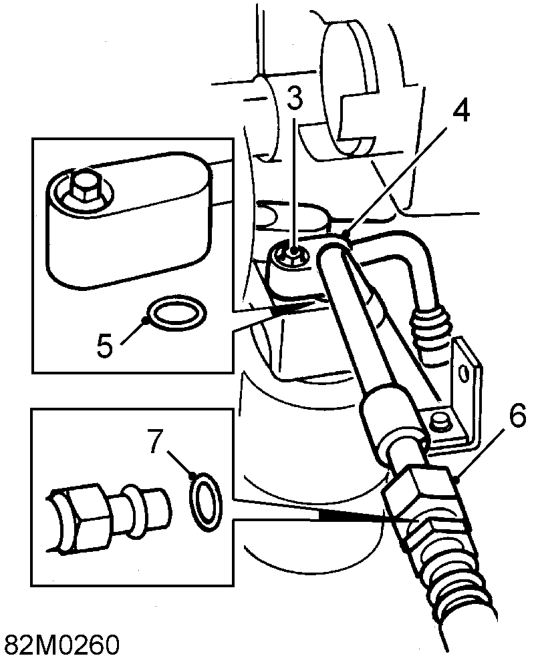

3. Remove bolt securing air conditioning pipe connection to receiver drier.
4. Disconnect air conditioning pipe connection from receiver drier.
5. Remove and discard ’O’ ring seal from air conditioning pipe connection.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

6. Loosen union and disconnect condenser pipe from compressor pipe.

CAUTION: To prevent damage to air conditioning pipes or components use two backing spanners when loosening or tightening unions.
