ENGINE HIGH TEMPERATURE SWITCH - ’L’ SERIES

Service repair no - 82.17.03

This is the engine overheat protection switch.

Remove

  1. Disconnect battery earth lead.
  2. Remove underbelly panel. See BODY, Exterior fittings.
  3. Position drain tray below engine oil filter.

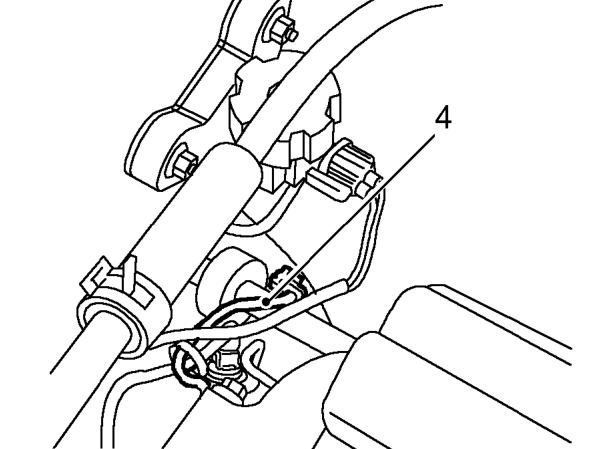

Engine high temperature switch - ’l’ series – Position drain tray below engine oil filter.
  1. Disconnect switch multiplug from engine harness.

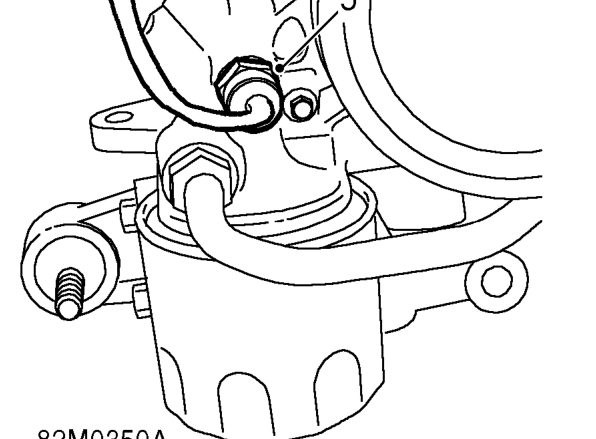

Engine high temperature switch - ’l’ series – Disconnect switch multiplug from engine harness.
  1. Remove temperature switch and discard sealing washer.

Refit

  1. Clean switch threads and fit NEW sealing washer.
  2. Fit temperature switch and tighten to 15 Nm.
  3. Connect switch multiplug to engine harness.
  4. Fit underbelly panel. See BODY, Exterior fittings.
  5. Top-up engine oil. See INFORMATION, Capacities, fluids and lubricants.
