CONDENSER - ’L’ SERIES

Service repair no - 82.15.07

Remove

  1. Recover refrigerant from air conditioning system. See Adjustments.
  2. Remove radiator. See COOLING SYSTEM - ’L’ SERIES, Repairs.

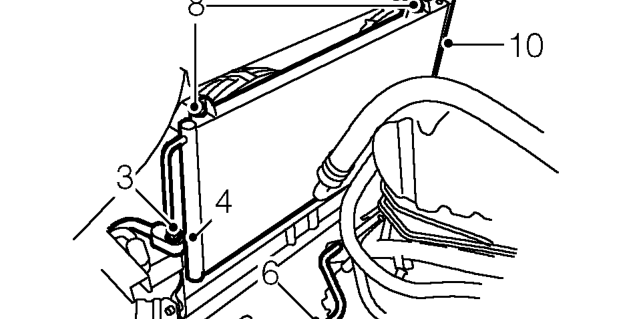

Condenser - ’l’ series – Remove radiator. See COOLING SYSTEM - ’L’ SERIES, Repairs.
  1. Remove bolt securing air conditioning connection, condenser to receiver drier.
  2. Disconnect air conditioning pipe connection from receiver drier.
  3. Remove and discard ’O’ ring seal from air conditioning pipe connection.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

  1. Loosen union and disconnect condenser pipe from compressor pipe.

CAUTION: To prevent damage to air conditioning pipes or components use a backing spanner when loosening or tightening unions.

  1. Remove and discard ’O’ ring from condenser pipe.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

  1. Remove 2 bolts securing condenser to condenser fan housing.
  2. Release condenser from lower mountings on condenser fan housing.
  3. Manoeuvre condenser from condenser fan housing and remove from vehicle.

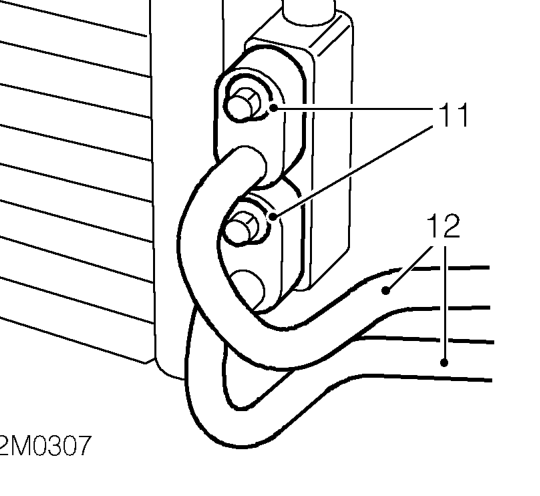

Condenser - ’l’ series – Manoeuvre condenser from condenser fan housing and remove from vehicle.
  1. Remove 2 bolts securing air conditioning pipe connections to condenser.
  2. Remove 2 air conditioning pipes from condenser.
  3. Remove and discard 2 ’O’ rings from air conditioning pipes.
