Air conditioningCondenser cooling fan - ’t’ series · page 2 of 2
  1. Remove and discard ’O’ ring from condenser pipe.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

Remove and discard ’O’ ring from condenser pipe.

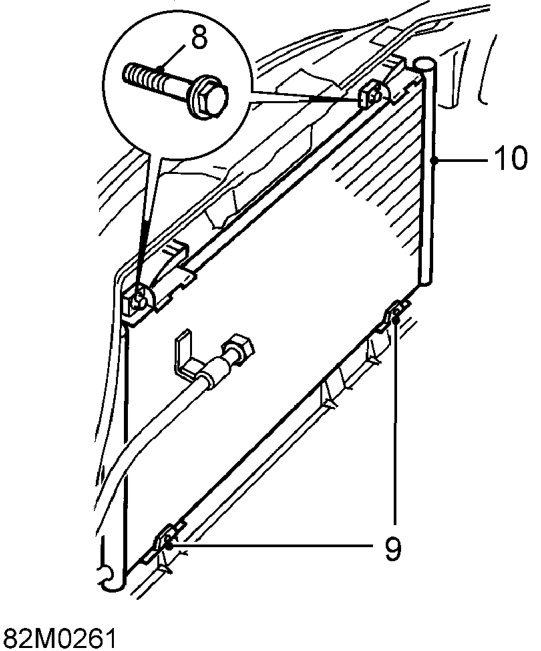

  1. Remove 2 bolts securing condenser to condenser fan housing.
  2. Release condenser from lower mountings on condenser fan housing.
  3. Manoeuvre condenser from condenser fan housing and remove from vehicle.
Manoeuvre condenser from condenser fan housing and remove from vehicle.

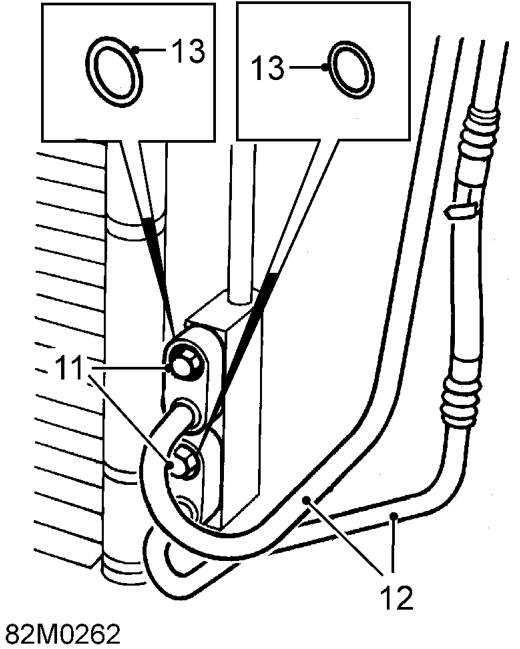

  1. Remove 2 bolts securing air conditioning pipe connections to condenser.
  2. Remove 2 air conditioning pipes from condenser.
  3. Remove and discard 2 ’O’ rings from air conditioning pipes.
