Receiver drier (page 3 of 3)

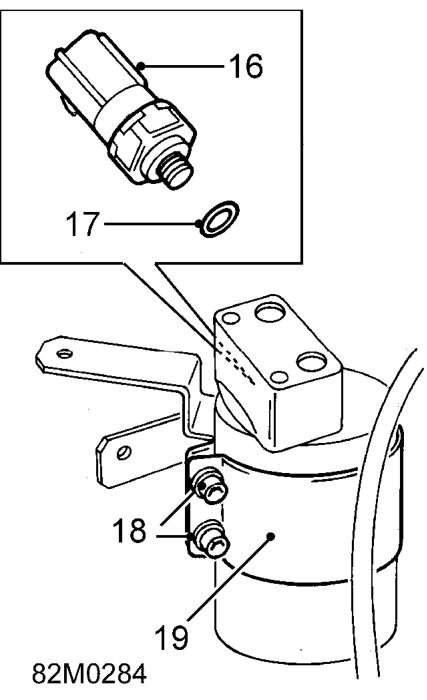

16. Remove trinary pressure switch.
17. Remove and discard ’O’ ring from trinary pressure switch.
18. Loosen 2 Allen screws securing mounting bracket to receiver drier.
19. Remove mounting bracket from receiver drier.

Refit

1. Fit mounting bracket to receiver drier and secure with Allen screws.
2. Clean mating faces of trinary pressure switch and receiver drier.
3. Lubricate new ’O’ ring seal with refrigerant oil and fit to trinary pressure switch.
4. Fit trinary pressure switch to receiver drier and tighten to 12 Nm.
5. Clean receiver drier and air conditioning pipe connections.
6. Lubricate new ’O’ rings with refrigerant oil and fit to air conditioning pipes.
7. Remove plugs from air conditioning pipes.
8. Position receiver drier to body, fit bolts and tighten to 9 Nm.
9. Connect air conditioning pipes to receiver drier.
10. Fit bolts securing air conditioning pipes to receiver drier and tighten to 5 Nm.
11. Connect multiplug to trinary pressure switch.
12. Position battery tray mounting bracket.
13. Connect multiplug to dim dip resistor.
14. Fit 2 bolts securing battery tray mounting bracket to body and tighten to 9 Nm.
15. Tighten 2 bolts securing battery tray mounting bracket to body to 9 Nm.
16. Position air intake hose to battery tray mounting bracket and secure with bolt.
17. Position harness and secure clip to body.
18. Position battery tray to mounting bracket.
19. Fit bolts securing battery tray to mounting bracket.
20. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
21. Recharge air conditioning system. See Adjustments.
