Receiver drier (page 2 of 3)

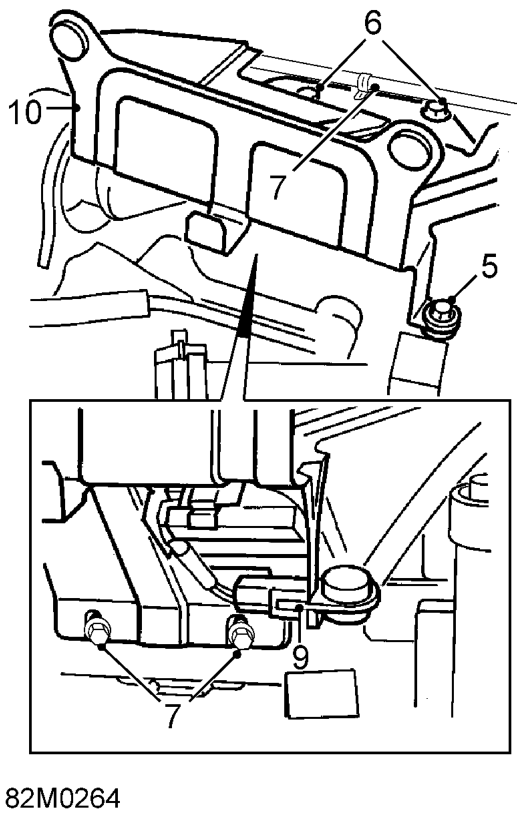

5. Remove bolt securing air intake hose to battery tray mounting bracket.
6. Remove 2 bolts securing battery tray mounting bracket to body.
7. Loosen 2 bolts securing battery tray mounting bracket to body.
8. Release clip securing harness to body and position harness aside.
9. Disconnect multiplug from dim dip resistor.
10. Remove battery tray mounting bracket.

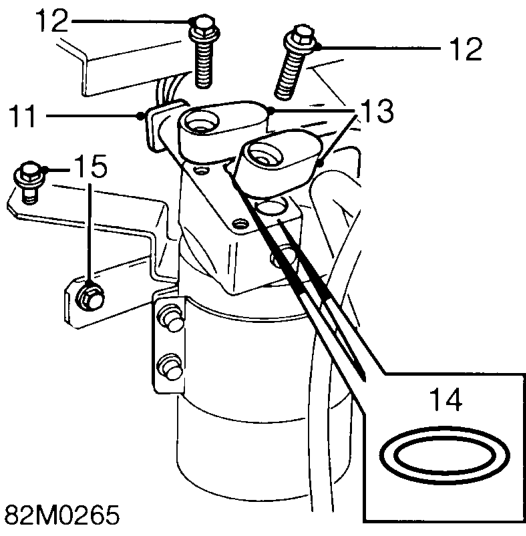

11. Disconnect multiplug from trinary pressure switch.
12. Remove 2 bolts securing air conditioning pipe connections to receiver drier.
13. Disconnect air conditioning pipe connections from receiver drier.
14. Remove and discard 2 ’O’ ring seals from air conditioning pipe connections.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

15. Remove 2 bolts securing receiver drier to body and remove receiver drier.
