Coolant pump - with air conditioning

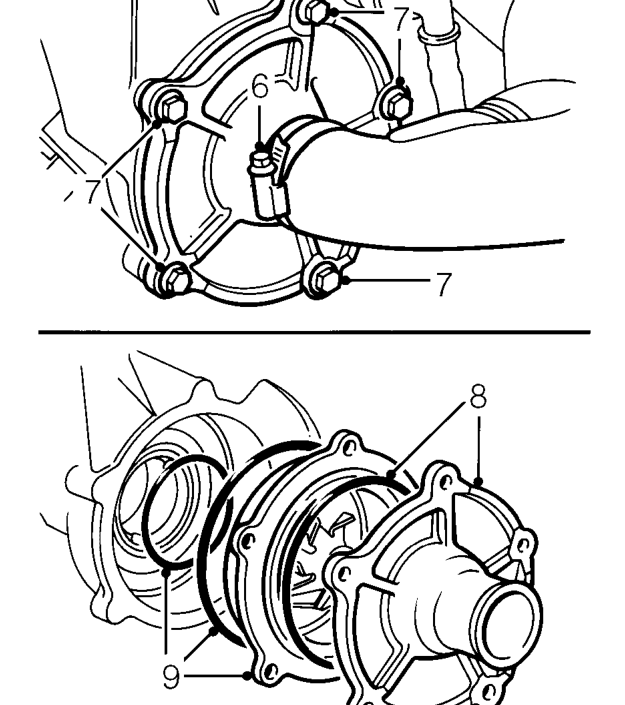

5. Slacken clip and release coolant hose from pump housing.
6. Remove 5 bolts securing cover to coolant pump.
7. Remove cover and discard ’O’ ring.
8. Remove coolant pump from housing and discard ’O’ ring.

Refit

1. Clean coolant pump housing and mating faces.
2. Fit ’O’ ring to coolant pump and coolant pump cover.
3. Fit coolant pump and cover.
4. Fit 5 bolts and tighten to 45 Nm.
5. Connect hose to coolant pump housing and tighten clip.
6. Fit top hose to engine and tighten clip
7. Connect top hose to radiator and thermostat housing and tighten clips.
8. Refill cooling system. See Adjustments.
9. Fit alternator. See ELECTRICAL, Repairs.

COOLANT PUMP - WITH AIR CONDITIONING

Service repair no - 26.50.01.20

Remove

1. Remove alternator. See ELECTRICAL, Repairs.
2. Drain cooling system. See Adjustments.

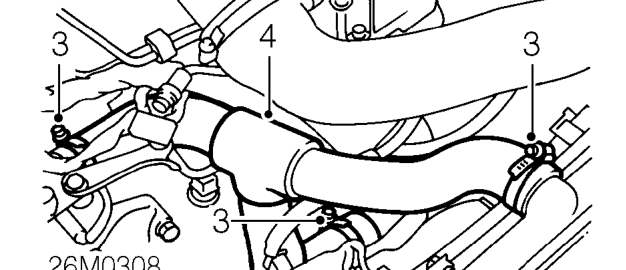

3. Slacken clips and release radiator top hose from engine, radiator and thermostat housing.
4. Remove radiator top hose from engine.

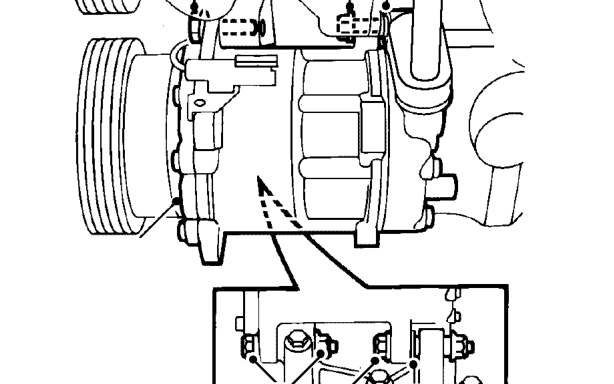

5. Remove 4 bolts 3 nuts and 2 washers from A/C compressor and pivot forwards.
