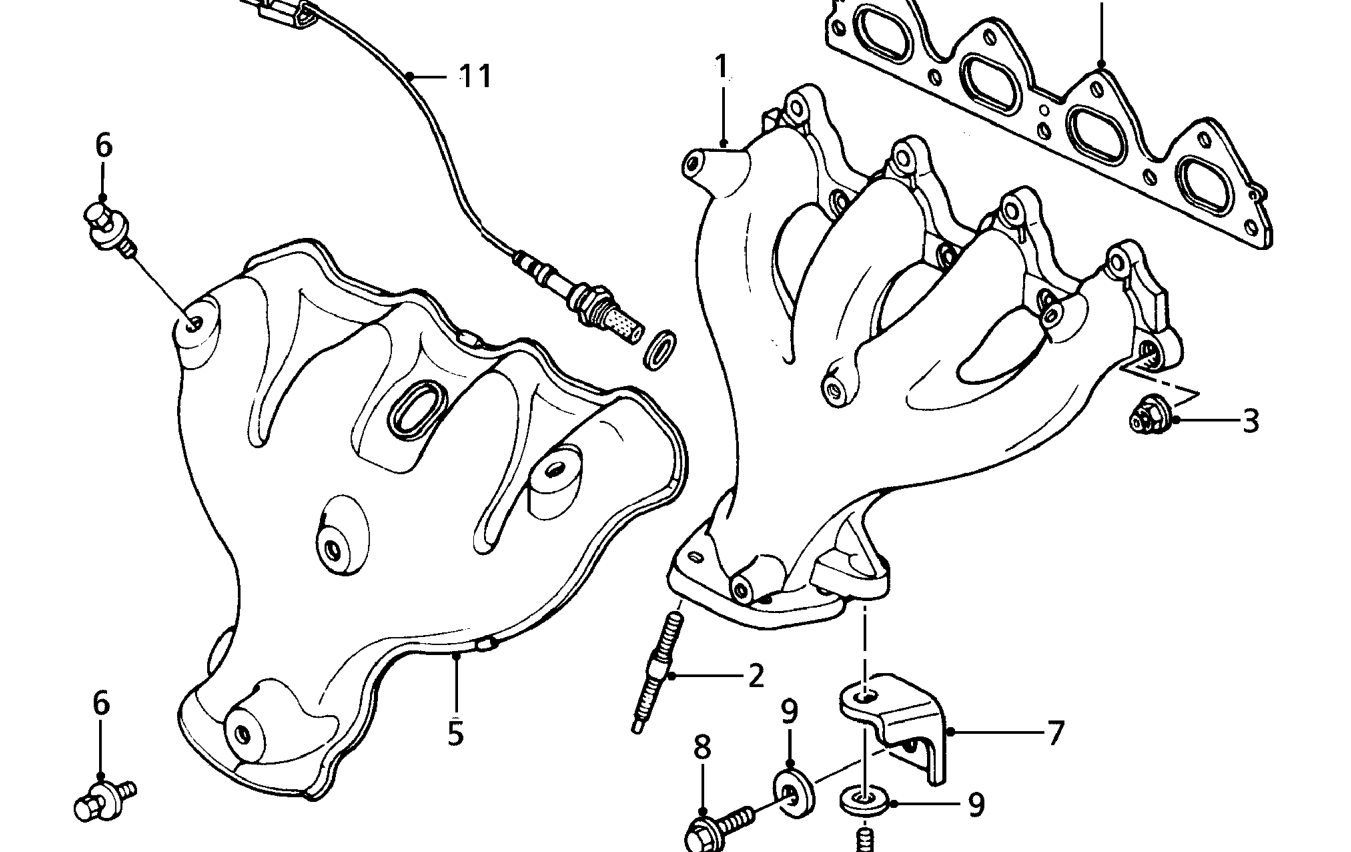

EXHAUST MANIFOLD - ’D’ SERIES

1. Exhaust manifold
2. Stud - M10 - 3 off
3. Self-locking nut - M8 - 9 off
4. Gasket - manifold to block
5. Heat shield
6. Bolt washer - M8 - 4 off
7. Stay - exhaust manifold
8. Bolt/washer - M10x25 - block
9. Plain washer
10. Bolt/washer - M10x22 - manifold
11. Oxygen sensor and gasket
