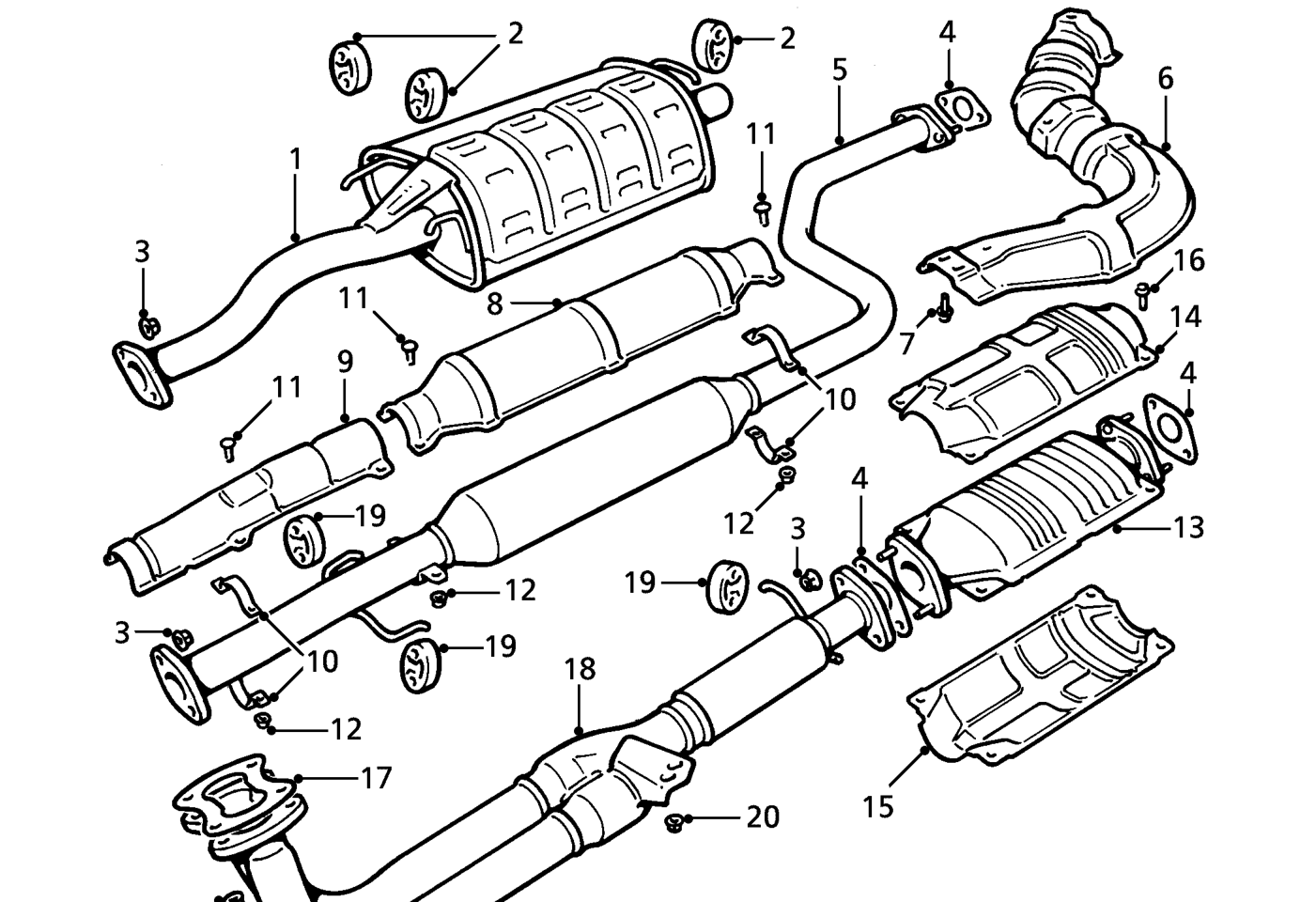

EXHAUST PIPE - ’K’ SERIES

1. Exhaust tail pipe
2. Mounting rubber - 3 off
3. Flange nut - 6 off
4. Gasket - 3 off - pipe flange
5. Exhaust intermediate pipe
6. Heat shield - fuel tank
7. Bolt - 3 off
8. Heat shield - body
9. Heat shield - body
10. Mounting bracket - heat shield - 4 off
11. Bolt - 6 off
12. Flange nut - 6 off
13. Catalytic converter
14. Heat shield - upper - catalyst
15. Heat shield - lower - catalyst
16. Bolt - 4 off
17. Gasket - manifold to front pipe
18. Exhaust front pipe
19. Mounting rubber - 3 off
