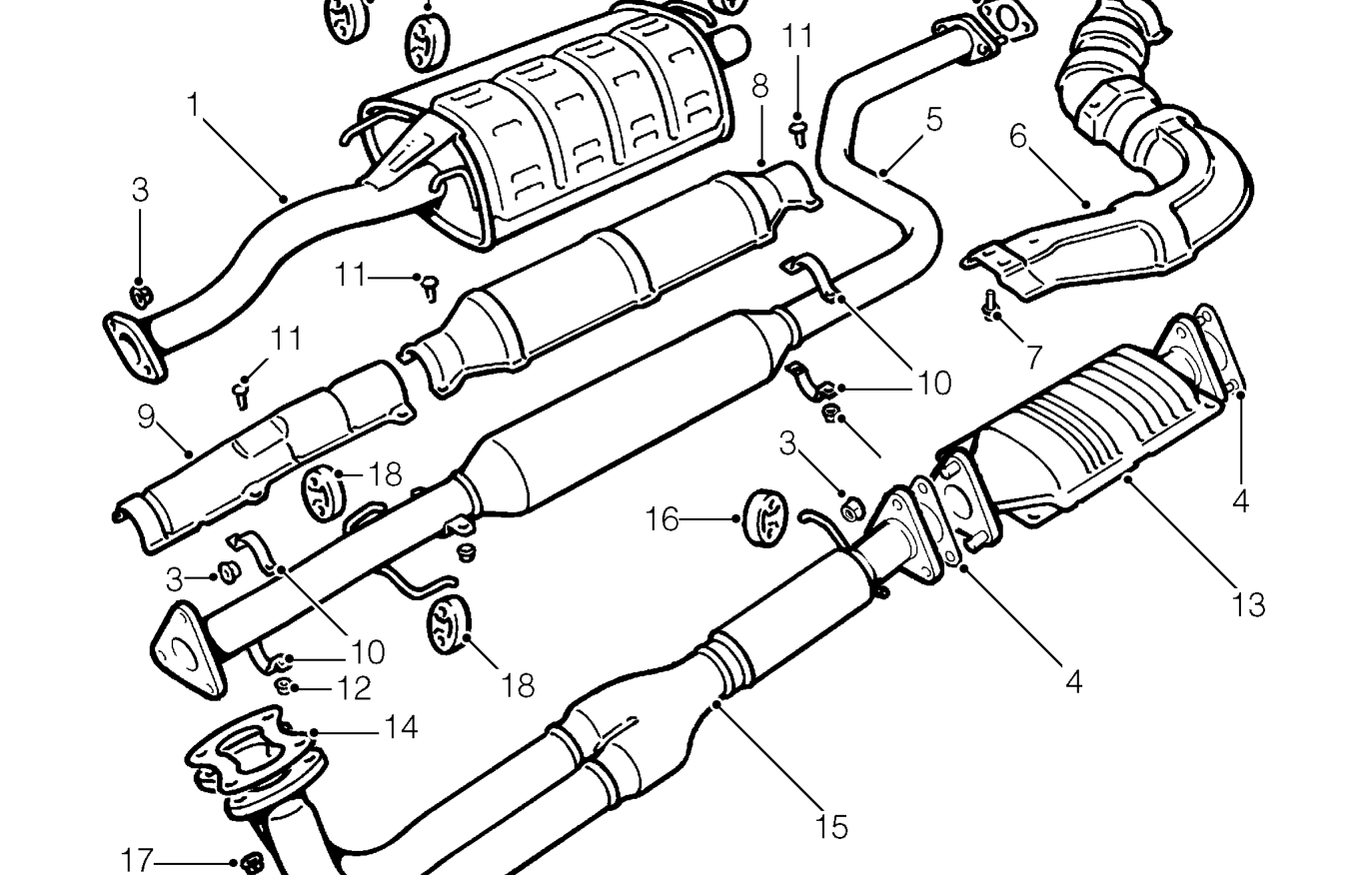

EXHAUST PIPE - ’T’ SERIES

1. Exhaust tail pipe
2. Mounting rubber - 3 off
3. Flange nut - 8 off
4. Gasket - pipe flange
5. Exhaust intermediate pipe
6. Heat shield - fuel tank
7. Bolt - 3 off
8. Heat shield - body
9. Heat shield - body
10. Mounting bracket - heat shield - 4 off
11. Bolt - 6 off
12. Flange nut - 6 off
13. Catalytic converter
14. Gasket - manifold to front pipe
15. Exhaust front pipe
16. Mounting rubber
17. Self-locking nut - 4 off
18. Mounting rubber - 2 off
