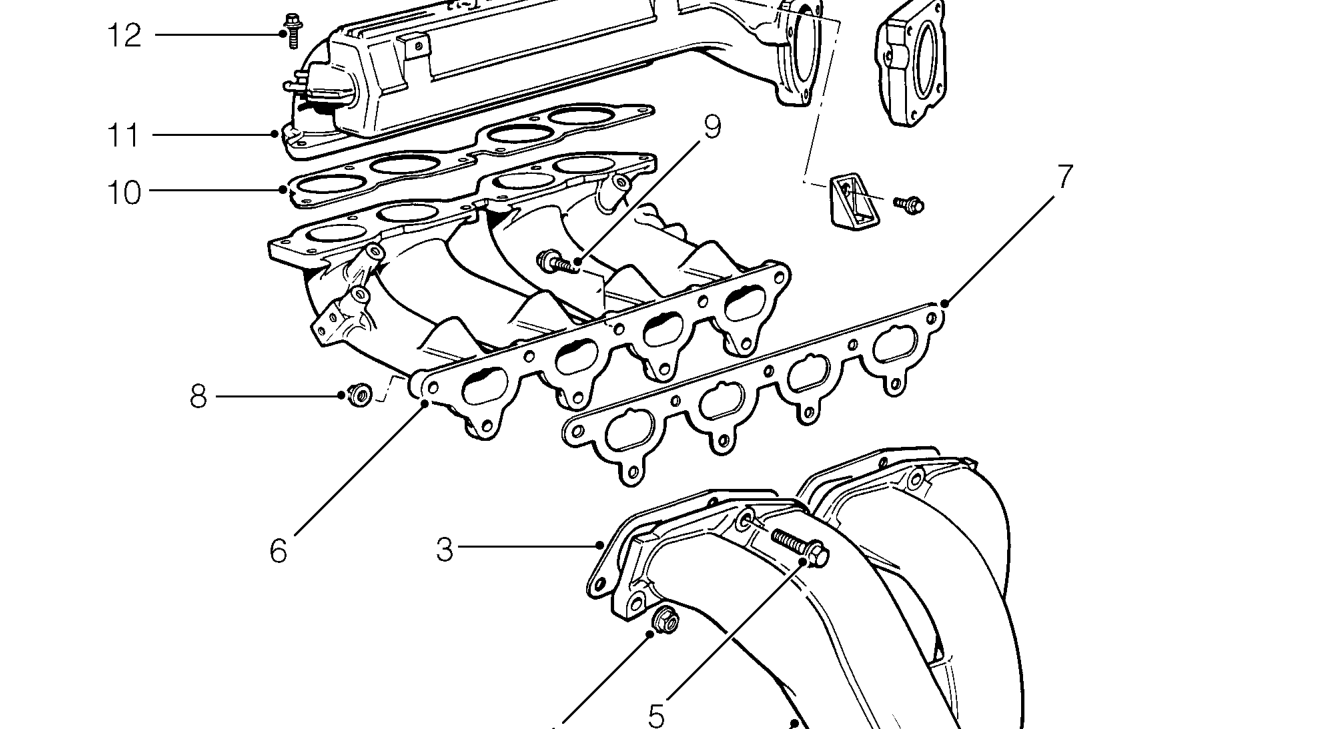

INLET AND EXHAUST MANIFOLDS - ’T’ SERIES

1. Exhaust manifold
2. Stud - exhaust manifold to front pipe
3. Gasket - exhaust manifold
4. Flange nut - 2 off
5. Bolt - exhaust manifold - 3 off
6. Inlet manifold
7. Gasket - inlet manifold to cylinder head
8. Flange nut - 2 off
9. Bolt - inlet manifold to cylinder head - 7 off
10. Gasket - inlet manifold to chamber
11. Inlet manifold chamber
12. Bolt - inlet manifold to chamber - 6 off
