EXHAUST PIPE - ’D’ SERIES

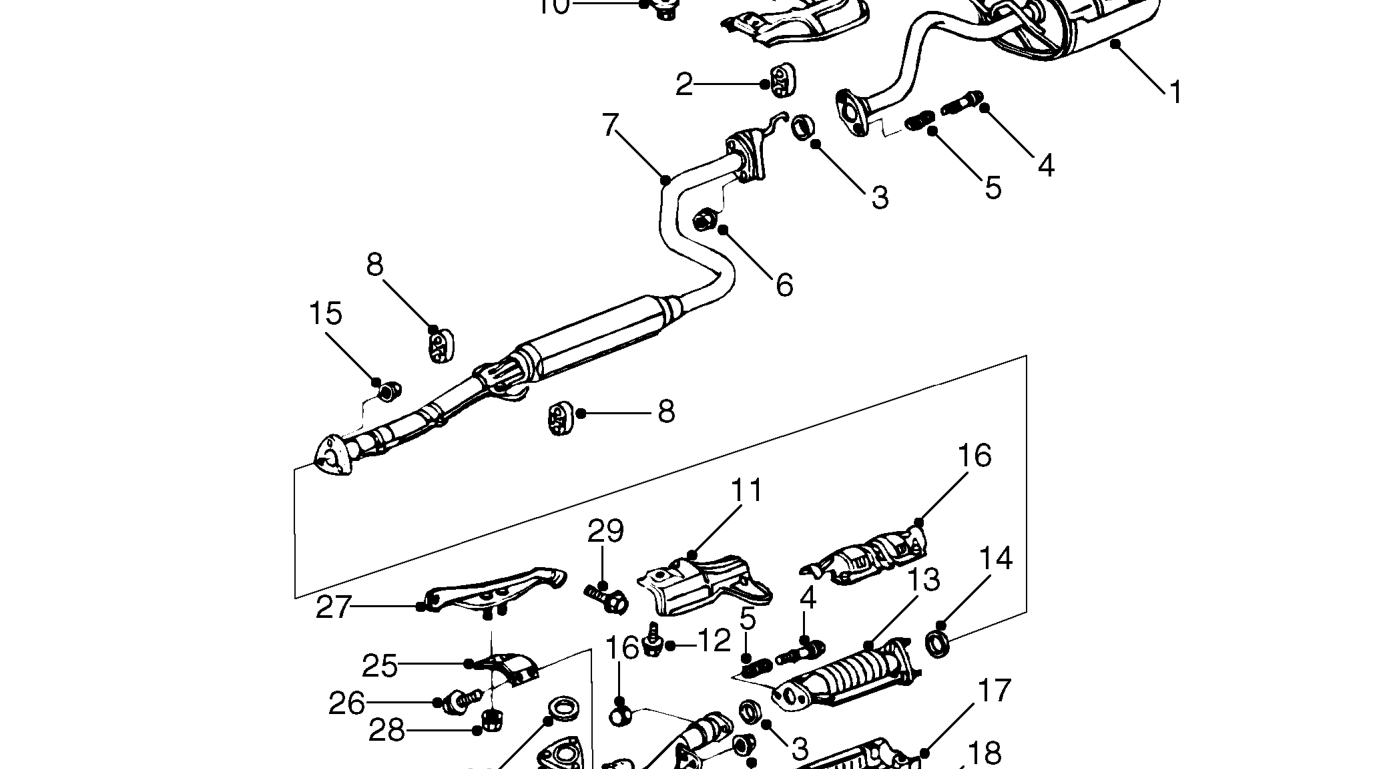

Exhaust pipe - ’d’ series
  1. Exhaust tail pipe
  2. Mounting rubber - 4 off
  3. Gasket - 2 off - tail/front pipe
  4. Bolt A - flexible joint - 4 off
  5. Tension spring - 4 off
  6. Self-locking nut - 4 off
  7. Exhaust intermediate pipe
  8. Mounting rubber - 2 off
  9. Heat shield - fuel tank
  10. Bolt/washer - 6 off
  11. Heat shield - floor
  12. Flange bolt - 4 off
  13. Catalytic converter
  14. Gasket - intermediate pipe
  15. Self-locking nut - 3 off
  16. Upper heat shield - catalytic converter
  17. Lower heat shield - catalytic converter
  18. Flange bolt - 4 off
  19. Exhaust front pipe
  20. Gasket - front pipe flange
  21. Self-locking nut - 3 off
  22. Stay - front pipe
  23. Self-locking nut - M8 - 2 off
  24. Bolt - M6 - 2 off
  25. Stay - front pipe
  26. Flange bolt - M8 - 2 off
  27. Mounting bracket - front pipe
  28. Self-locking nut - M8 - 2 off
  29. Bolt - M8 - 2 off
